Four Process Side Hole Machine for cabinet and wardrobe production, supporting barcode scanning, handle slots, hinge holes, lock holes, and straightener groove processing.
Original price was: $4,530.00.$4,042.81Current price is: $4,042.81.

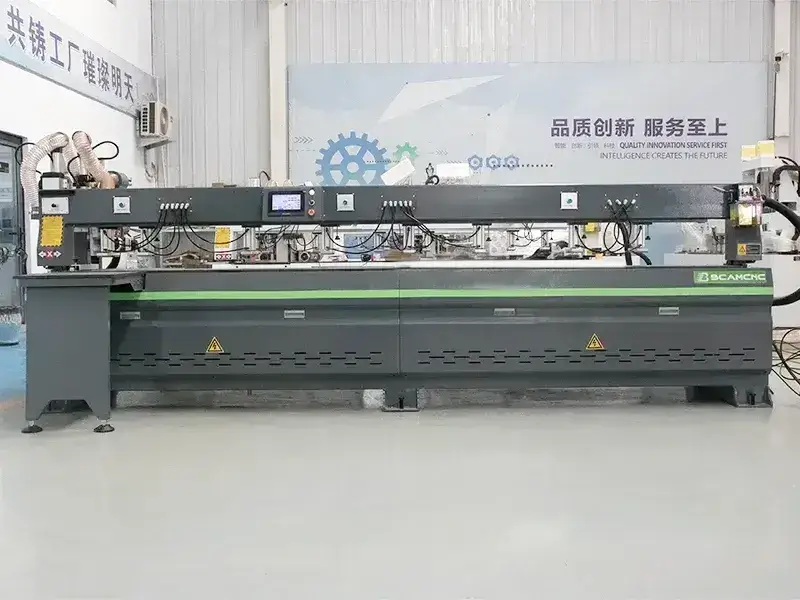

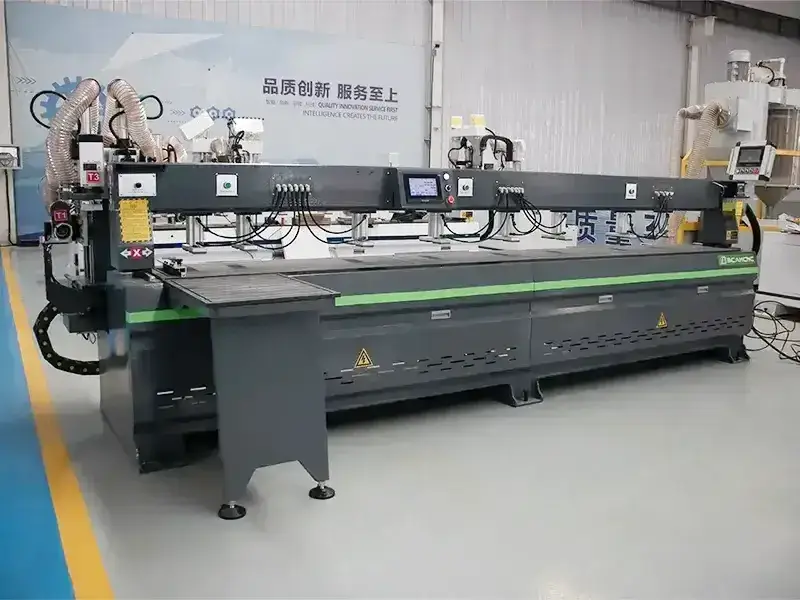

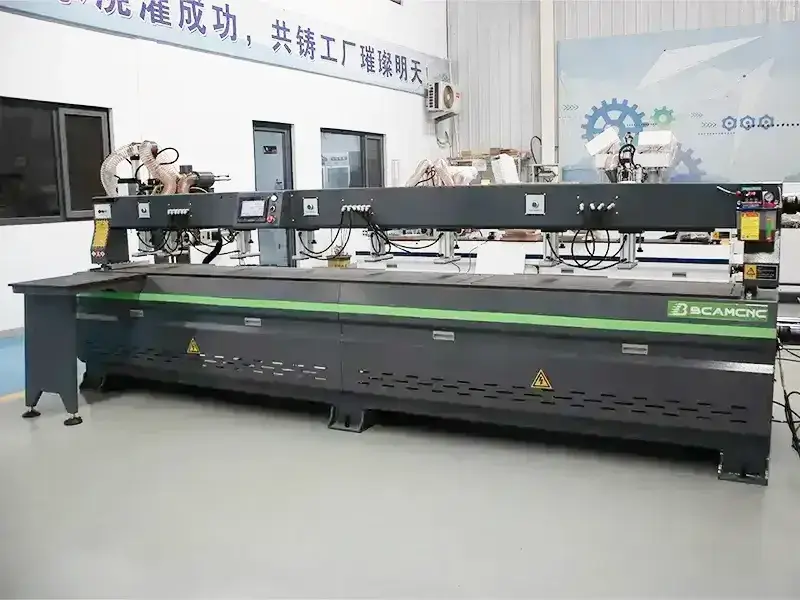

The BCM3010 Four Process Side Hole Drilling Machine is a high-efficiency CNC side hole machine designed for modern panel furniture processing.
This advanced Four Process Side Hole Machine expands the functions of a traditional cabinet side hole drilling machine by integrating multiple processes such as cabinet door handle slots, straightener grooves, hinge holes, and lock holes in one setup.
As a professional furniture side hole CNC machine, the BCM3010 helps furniture manufacturers improve accuracy, reduce labor costs, and increase overall production efficiency.
The Four Process Side Hole Machine for cabinets supports a wide range of woodworking and furniture hardware processes, including:
This CNC machine for cabinet door handles and hinges supports Barcode scanning, enabling dual-process execution with a single scan and seamless integration with mainstream furniture design software.
High Efficiency Production
By combining four processes into one system, the Four Process Side Hole Machine significantly improves output compared to a traditional CNC side drilling machine for panel furniture.
High Precision Machining
With a rigid structure and accurate positioning system, this cabinet side hole drilling machine ensures precise hole alignment and repeatable machining quality.
As a modern panel furniture processing machine, it supports both batch production and customized orders.
Samples produced by the Furniture side hole CNC machine include:
These samples fully demonstrate the performance of the Four Process Side Hole Machine for cabinets in real production scenarios.
Typical samples processed by the Four Process Side Hole Machine include:
These samples demonstrate the high accuracy and clean finish achieved by the Four Process Side Hole Machine.
| Item | Specification |
|---|---|
| Machine Type | Four Process Side Hole Machine |
| Max Panel Size | 2800 × 1300 × 50 mm |
| Spindle Configuration | 4 Spindles (T1 / T2 / T3 / T4) |
| Spindle Power | T1/T2: 3.5 kW · T3/T4: 2.2 kW |
| Spindle Speed | Up to 18,000 RPM |
| Control System | LNC Control with Barcode Scanning |
| Positioning Method | Pneumatic Cylinder Positioning |
| Processing Speed | 10–80 m/min |
| Power Supply | 3 Phase / 380V / 50Hz · 6 kW |
The BCM3010 Four Process Side Hole Machine is an ideal choice for furniture manufacturers seeking automation, accuracy, and scalability.
Q1: What materials can this machine process?
A: The BCM3010 can process MDF, particle board, plywood, and other panel furniture materials up to 50 mm thickness. It is ideal for cabinet doors, wardrobe panels, and custom furniture.
Q2: What is the maximum panel size the machine can handle?
A: Maximum panel size is 2800 × 1300 × 50 mm (L × W × T).
Q3: Does the machine support handleless cabinet doors?
A: Yes, it supports both handle and handleless doors, including concealed connectors like Lamello and other multi-type fittings.
Q4: How does the barcode scanning system work?
A: Each panel is assigned a barcode. Scanning the barcode automatically selects the correct program and processing sequence for dual-process execution, reducing manual errors.
Q5: What is the speed and efficiency of the machine?
A: Processing speed ranges from 10–80 m/min, with rapid movement up to 100 m/min. The machine integrates four processes in one setup, significantly improving productivity.
Q6: What level of automation does this machine offer?
A: The machine features barcode-based automatic program selection, pneumatic positioning, independent dust collection for each station, and seamless integration with mainstream furniture software.
Q7: How precise is the machine?
A: The BCM3010 is equipped with high-precision ball screws, 20 mm square linear guides, and reinforced spindles, ensuring consistent hole alignment and repeatable processing quality.
Q8: What maintenance is required?
A: Minimal maintenance is needed. Features include centralized lubrication, modular components for easy replacement, and dust extraction to protect moving parts.
Q9: What support and warranty are provided?
A: We provide full technical support, installation guidance, and training. Standard warranty covers one year for electrical and mechanical components. Extended support is available on request.
Q10: Can the machine be customized?
A: Yes, parameters such as spindle configuration, worktable size, and software integration can be customized according to production needs.
