High-precision side drilling machine with dual heads for MDF, plywood, and panel furniture. Efficient, safe, and perfect for woodworking factories.
Original price was: $2,541.00.$2,114.00Current price is: $2,114.00.
In modern woodworking and furniture production industries, efficiency, precision, and consistency are essential for competitive manufacturing. A side drilling machine has become a cornerstone in panel processing, allowing furniture factories, cabinetry workshops, and custom woodworking businesses to meet growing market demands. Among advanced solutions, the Horizontal Double Head Side Drilling Machine stands out for its dual-head design, providing unparalleled productivity for high-volume operations.
The machine is specifically engineered to drill accurate horizontal holes, dowel holes, shelf pin holes, and connector holes on a variety of panels, including MDF, particle board, plywood, and laminated boards. By integrating a CNC side drilling machine system, it ensures precise hole alignment with repeatable accuracy up to ±0.05mm. This level of precision is crucial for modular furniture, cabinet assembly, and custom joinery where every panel must fit perfectly.
Unlike traditional single-head side drilling machines or manual drilling methods, this double-head system allows simultaneous drilling operations. This reduces cycle time by nearly 50% while maintaining high accuracy, making it ideal for manufacturers aiming to increase throughput without compromising quality. Additionally, operators benefit from a user-friendly automatic side drilling machine interface that simplifies programming for common drilling patterns, including 32mm Euro-standard holes and hinge holes.
Beyond furniture production, the Horizontal Double Head Side Drilling Machine finds applications in door and window manufacturing, structural timber processing, and customized panel fabrication. Its CNC side drilling machine for woodworking capabilities make it adaptable to different board sizes, thicknesses, and materials, offering versatile solutions for a wide range of industries.
Investing in a furniture side drilling machine ensures long-term benefits, from faster production cycles and reduced labor costs to minimized material waste. Modern workshops that adopt such advanced automatic side drilling machines experience smoother workflow, consistent quality, and enhanced safety, making this equipment a must-have for professional woodworking operations.
The Horizontal Double Head Side Drilling Machine is designed for precision, efficiency, and durability. Each component is carefully selected to ensure smooth operation and long-term reliability. This side drilling machine integrates modern CNC systems while maintaining user-friendly controls, making it an ideal solution for furniture factories, cabinet workshops, and custom woodworking applications.
| Maximum plate size | 2800*1300*50mm |
| Height of working table | 750mm |
| Spindle motor brand | SCS / Changsheng |
| Spindle motor speed | 18000RPM/min |
| Drive motor power | 750W+400W |
| Laser Probe | American Bonner |
| Electrical main parts | Chint Electric |
| Guide rail | 20 square guide rail |
| Rack and pinion | Jenn-Li rack and pinion |
| Reducer | Taiwan planetary |
| Central oiling system | automatic oiling pumps |
| Pneumatic Components | Baiti Pneumatic |
| Fixing method | Pneumatic inclined pressure foot |
| Table top | PVC high toughness engineering board |
| Air speed | 10-100m/min |
| Processing speed | 10-80m/min |
| Configuration | 3p 380v 50hz 6 kw |
The Horizontal Double Head Side Drilling Machine combines high-precision components, automated functionality, and a compact design, making it a superior side drilling machine and Side Hole machine for modern woodworking and furniture production.

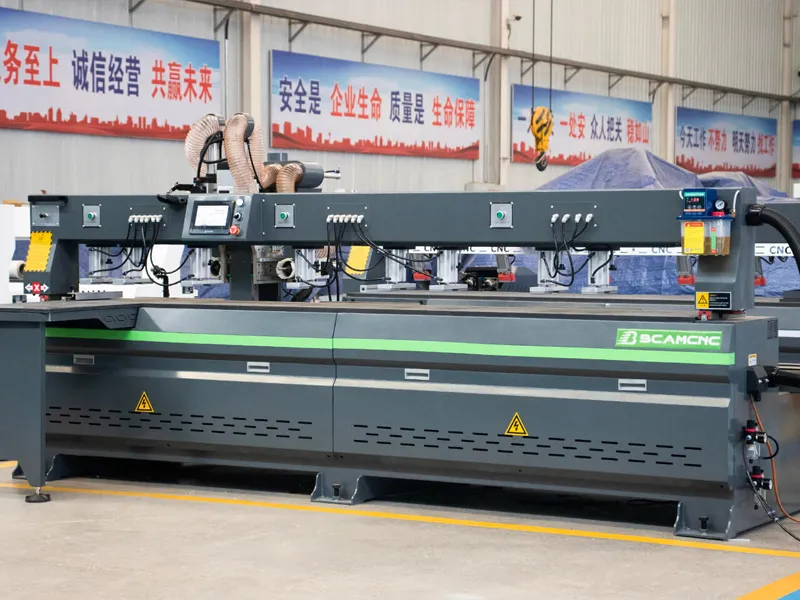

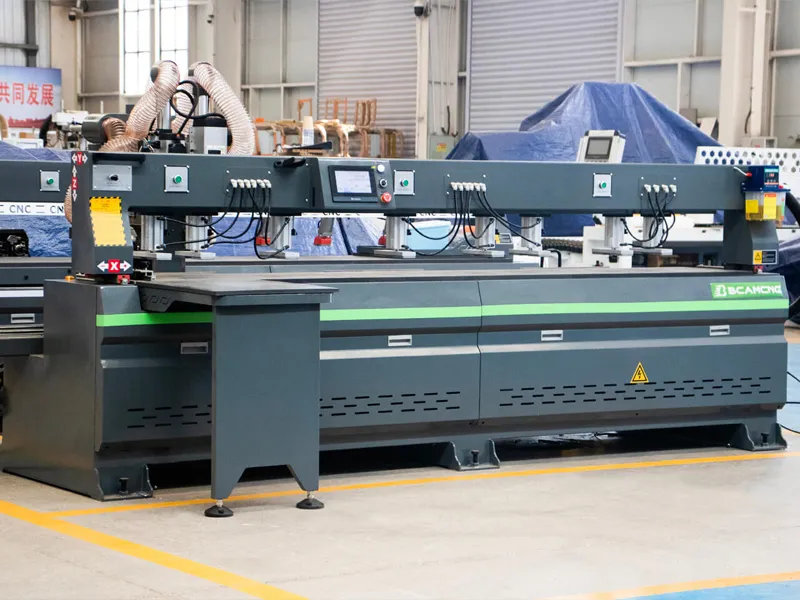

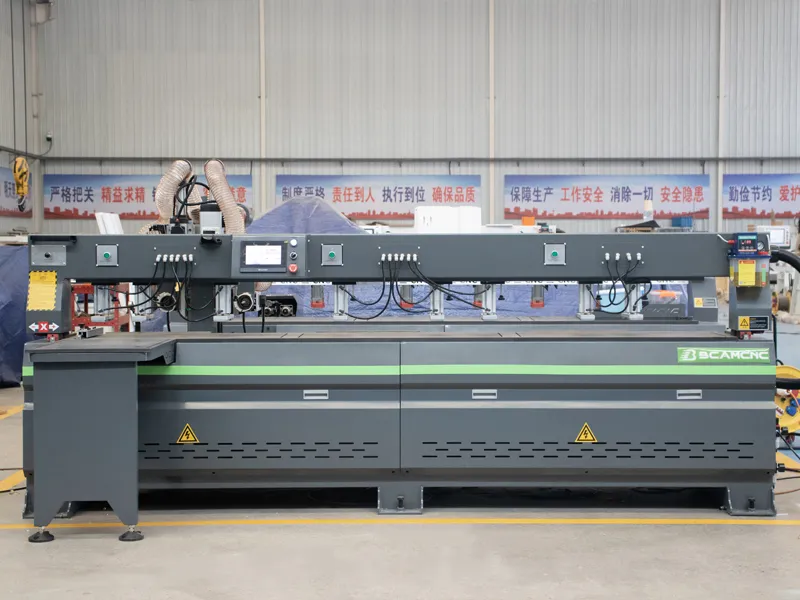

Horizontal Double Head Side Hole Drilling Machine Details
 |
 |

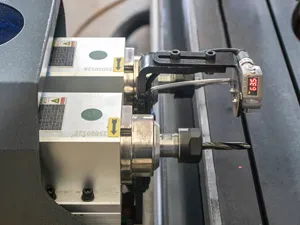

The machine drilling package is controlled by pure copper servo motor to ensure the accuracy and efficiency of the machine |
| Customized dual servo system, stable perf ormance, good compatibility. |  |
 |
 |
|

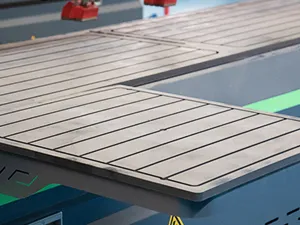

The fuselage adopts high strength mesa to avoid the error caused by mesa wear and prolong the service life of the machine. |
|

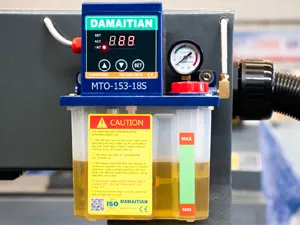

CNC electromagnetic oil pump, oil injector automatic oil, to protect the operation of the machine, in case of artificial forget oil damage machine. |
|
 |
1.Dual-Head Efficiency for Maximum Productivity
The most prominent feature of this side drilling machine is its dual independent drilling heads. Unlike traditional single-head or manual side drilling machines, it can drill multiple holes simultaneously, drastically reducing production time. This efficiency is particularly beneficial for drilling shelf pins, dowel holes, and connector holes in furniture boards. By integrating a CNC side drilling machine system, manufacturers can achieve faster throughput while maintaining high precision.
2.High-Precision Alignment
Precision is essential in modern woodworking, and the horizontal double head side drilling machine guarantees repeatable accuracy up to ±0.05mm. CNC-controlled servo motors and high-precision linear guides ensure that every hole aligns perfectly with the Euro-standard 32mm system. This accuracy reduces material waste, avoids misaligned joinery, and improves overall product quality, making it ideal for furniture, cabinetry, and custom panel production.
3.Versatile Drilling Capabilities
This automatic side drilling machine for panel furniture can process a wide range of materials, including MDF, plywood, particle boards, laminated panels, and even aluminum profiles. Spindle speeds are adjustable, allowing hole diameters from 5mm to 50mm. Its versatility makes it suitable for various industries, from furniture manufacturing to door and window production, and even custom joinery workshops.
4.Space-Saving Horizontal Design
Floor space in woodworking shops is often limited. The horizontal layout of this CNC side drilling machine for woodworking optimizes space while allowing the processing of panels up to 4 meters in length. This compact design supports long workpieces, reduces the need for repositioning, and allows factories to maintain an efficient workflow without compromising capacity.
5.Automated Tool Switching
Downtime during tool changes can slow production. This furniture side drilling machine comes equipped with 12+ automatic tool stations, allowing seamless switching between drilling, countersinking, and threading. This automation minimizes manual intervention, speeds up production, and ensures continuous workflow in high-volume furniture factories.
6.User-Friendly Interface and Smart Control
Even operators with limited experience can efficiently run this CNC side drilling machine. The touchscreen PLC interface includes pre-programmed templates for common drilling tasks, error detection, and real-time alerts. This simplifies setup for standard 32mm cabinet systems, hinge drilling, or custom patterns, reducing training time while improving operational safety and accuracy.
7.Safety and Dust Extraction Features
Modern woodworking workshops demand safety and cleanliness. This side drilling machine for cabinet making integrates a high-efficiency cyclone dust collection system, multiple emergency stops, and optional light curtains for operator protection. By maintaining a clean work environment and preventing dust accumulation, it extends machine lifespan and ensures safe operation.
The Horizontal Double Head Side Drilling Machine is a versatile piece of equipment widely used in furniture factories, woodworking workshops, and panel production facilities. Its dual-head design, CNC control, and automated features make it ideal for high-volume production while maintaining precision and flexibility. This Side Hole machine caters to both standard and customized drilling needs.
Applicable Materials

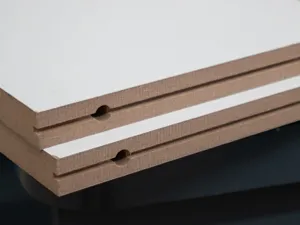

1.Wood Panels (Solid Wood, MDF, Plywood, Particle Board)

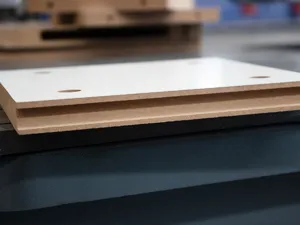

The side drilling machine can process a variety of wood-based panels, including MDF, plywood, particle boards, and laminated surfaces. Its precise drilling heads ensure that dowel holes, shelf pins, and connector holes are perfectly aligned, minimizing material waste.
2.Composite Boards and Engineered Wood
For custom furniture and modular cabinetry, this Side Hole machine handles engineered wood and composite panels efficiently. Adjustable spindle speeds and automated tool switching allow for consistent hole quality across different thicknesses and densities.
3.Aluminum Profiles and Lightweight Panels
Some furniture components or interior partitions require aluminum or composite panels. The CNC side drilling machine is capable of drilling these materials with high precision, expanding its applications beyond traditional wood panels.
Application Industries
1.Furniture Manufacturing
The side drilling machine is essential for producing cabinet bodies, wardrobes, modular shelving, and flat-pack furniture. Its high-precision drilling guarantees perfect alignment for assembly, improving efficiency and reducing assembly errors.
2.Kitchen and Closet Production
This Side Hole machine allows manufacturers to drill precise hinge holes, dowel positions, and shelf supports for kitchen cabinets, wardrobes, and drawer systems. The dual-head configuration reduces processing time by up to 50%, ideal for high-volume production lines.
3.Office & Commercial Furniture
Desks, partitions, conference tables, and storage systems often require multiple precise holes for assembly. The CNC side drilling machine ensures consistent quality and repeatability, making it suitable for office furniture factories.
4.Door and Window Manufacturing
Wooden doors, windows, and frames require accurate drilling for hinges, locks, and side holes. The Side Hole machine handles large panels up to 2800mm, providing versatility and efficiency for door and window manufacturers.

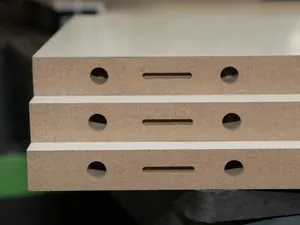

5.Custom Joinery & Carpentry
For specialized furniture, artistic woodwork, or bespoke cabinetry, the side drilling machine can drill angled or custom patterns. Adjustable spindle angles (0–90°) enable complex drilling operations, suitable for high-end carpentry projects.
How It Is Applied
1.Panel Loading and Fixing
Panels are placed on the machine table and securely clamped using pneumatic inclined pressure feet. The Side Hole machine ensures stable positioning to prevent misalignment during drilling.
2.Program Selection and Setup
Operators select pre-programmed templates or customize drilling patterns via the touchscreen PLC interface. The CNC side drilling machine allows simultaneous adjustment of both drilling heads, optimizing efficiency for batch or custom production.

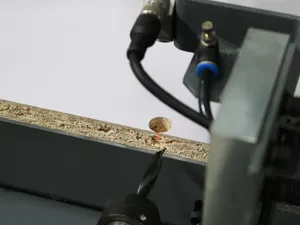

3.Drilling Operation
The dual independent heads drill multiple holes simultaneously. Automated tool switching reduces downtime, while high-speed spindle motors maintain accuracy across various panel types.
4.Quality Check and Finishing
After drilling, panels are inspected for hole alignment, depth, and diameter. Using a side drilling machine ensures that each panel meets strict assembly requirements, reducing rework and material waste.
5.Integration with Production Lines
The Side Hole machine can communicate with existing conveyor systems and CNC routers via RS-485 or CAN bus, making it suitable for automated production lines in furniture and cabinetry factories.
1. What materials can this side drilling machine process?
The Horizontal Double Head Side Drilling Machine can efficiently drill wood, MDF, plywood, particle board, and composite panels up to 50mm thick. It can also handle aluminum profiles and lightweight engineered boards. The tool setup can be adjusted according to material hardness, making the Side Hole machine versatile for different woodworking applications.
2. How does the dual-head system improve production efficiency?
By using both drilling heads simultaneously, the side drilling machine cuts processing time by nearly 50% compared to traditional single-head machines. This feature is essential for high-volume furniture production, cabinet making, and panel furniture workshops.
3. What is the positioning accuracy of the machine?
Thanks to CNC-controlled servo motors and precision linear guides, the Side Hole machine ensures a repeatable accuracy of ±0.05mm. This high level of precision guarantees perfect alignment for modular furniture, doors, and custom cabinetry.
4. Can it handle long panels or boards?
Yes. The horizontal layout of the side drilling machine allows panels up to 2800mm in length to be drilled without repositioning. This is ideal for cabinet sides, large doors, and custom joinery components.
5. How many tools can the machine store and switch automatically?
The machine supports 12+ tool storage stations, enabling automated switching between drilling, countersinking, and threading tools. This minimizes downtime and allows continuous workflow for furniture and panel production.
6. Is the machine compatible with standard cabinet systems?
Yes. The Side Hole machine comes with pre-programmed drilling templates for the 32mm cabinet system, Euro hinges, and common shelf pin layouts. Custom patterns can also be programmed for specialized furniture projects.
7. What safety features does the side drilling machine have?
Safety features include multiple emergency stop buttons, a high-efficiency cyclone dust collection system, and optional light curtains for operator protection. The Side Hole machine complies with ISO workplace safety standards, ensuring both operator safety and a clean workshop environment.
8. What maintenance is required for the machine?
Daily maintenance includes cleaning dust filters and lubricating guide rails. Monthly inspections involve spindle belts and machine calibration. Yearly maintenance consists of replacing drill bits and checking wear parts. Proper maintenance ensures long-term reliability for the side drilling machine.
9. What power supply is needed?
The machine requires a 3-phase 380V/50Hz power supply, consuming 5–7kW under full load. It can be integrated with factory automation systems, conveyors, or CNC routers to create a seamless production line.
10. Can this machine be used for custom furniture production?
Absolutely. The Side Hole machine supports adjustable spindle angles (0–90°) and customizable drilling templates, making it suitable for specialized joinery, artistic designs, and high-end furniture production.
11. What industries commonly use this side drilling machine?
12. Why choose a Horizontal Double Head Side Drilling Machine?
This side drilling machine offers high-precision drilling, dual-head efficiency, automated tool switching, and a user-friendly interface. It reduces production time, ensures perfect alignment, and maintains consistent quality, making it a vital investment for modern woodworking and furniture production.
The Horizontal Double Head Side Drilling Machine is a high-performance woodworking solution designed for furniture factories, panel furniture workshops, cabinet manufacturers, and large-scale industrial panel processing plants. Combining dual-head efficiency, precise CNC control, and automated tool switching, this side drilling machine delivers unmatched productivity and consistent accuracy.
With its Side Hole machine design, operators can drill multiple holes simultaneously, reducing production time by nearly 50% while ensuring ±0.05mm precision. This high level of accuracy is critical for modular furniture, custom cabinetry, and specialized joinery where precise alignment of dowel holes, shelf pin holes, and connector holes is essential.
The machine’s versatility allows it to handle a wide range of materials, including MDF, plywood, particle boards, laminated panels, and even lightweight aluminum profiles. Whether for small batch custom furniture projects or high-volume cabinet production, the side drilling machine adapts to various manufacturing requirements, making it a reliable choice for diverse woodworking operations.
Key benefits of choosing this Horizontal Double Head Side Drilling Machine include:
Investing in a Side Hole machine or side drilling machine from BCAMCNC guarantees not only high-quality machinery but also global support, technical training, and long-term reliability. It is a cost-effective solution for woodworking businesses seeking efficiency, precision, and scalability in modern furniture production.
Whether you are producing modular cabinets, office furniture, custom doors, or large panel assemblies, this side drilling machine ensures that your operations are faster, more precise, and more productive. It minimizes rework, reduces material waste, and allows your workshop or factory to meet tight deadlines without compromising quality.
In conclusion, the Horizontal Double Head Side Drilling Machine is an essential investment for any woodworking enterprise looking to elevate its panel drilling capabilities. Its combination of speed, accuracy, versatility, and safety makes it one of the most reliable side drilling machines on the market today. For furniture manufacturers, cabinet makers, and custom woodworking professionals, this machine represents a future-proof solution that will deliver consistent results for years to come.
