Vacuum Lifting Equipment for Woodworking
Last Updated: 2025-12-15
Vacuum Lifting Equipment for Woodworking is designed to safely and efficiently handle wood panels, MDF, plywood, and boards in woodworking shops. It reduces manual labor, improves productivity, and minimizes damage during loading, unloading, and material transfer.
Efficient Panel Handling Solutions for Furniture Manufacturing

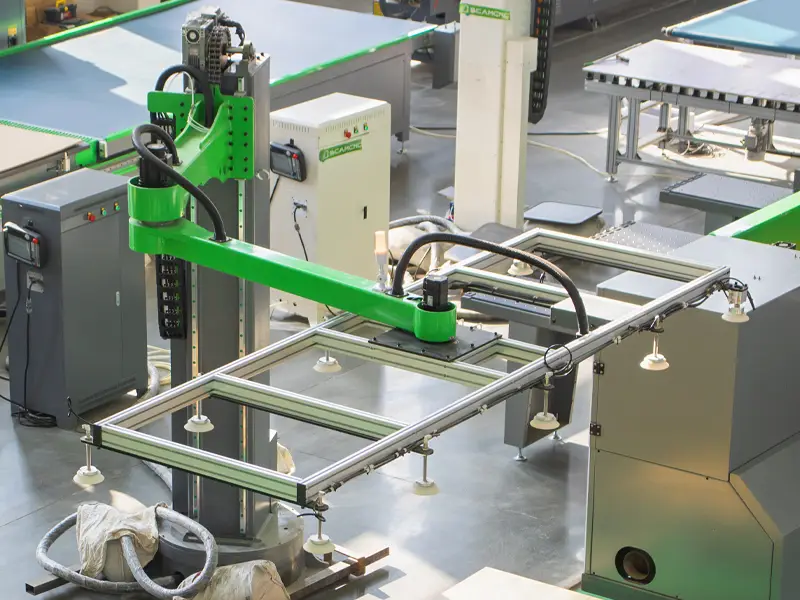

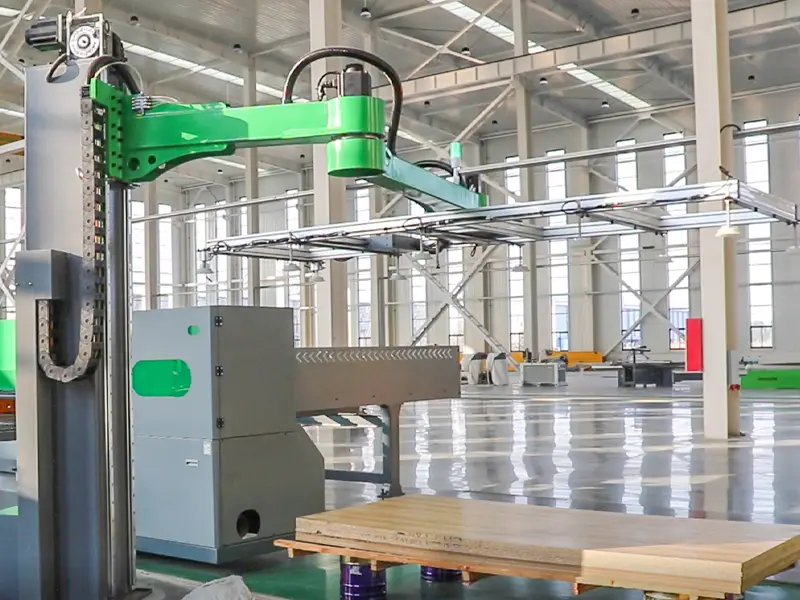

Our BC500-6S Vacuum Lifting Equipment for Woodworking is designed to improve material handling efficiency in modern furniture factories. By using stable vacuum suction technology, wood panels can be lifted, moved, rotated, and positioned safely with minimal manual effort. This solution helps manufacturers reduce labor costs, protect panel surfaces, and maintain a smooth production flow.

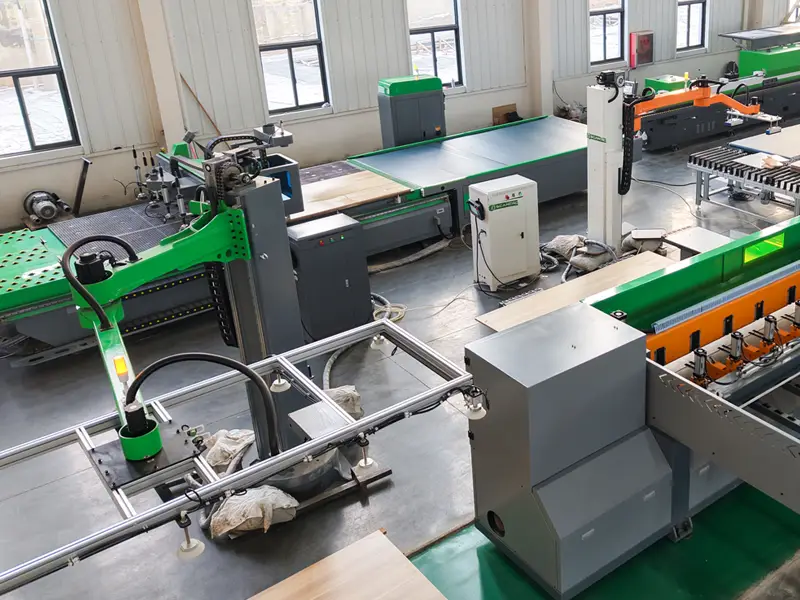

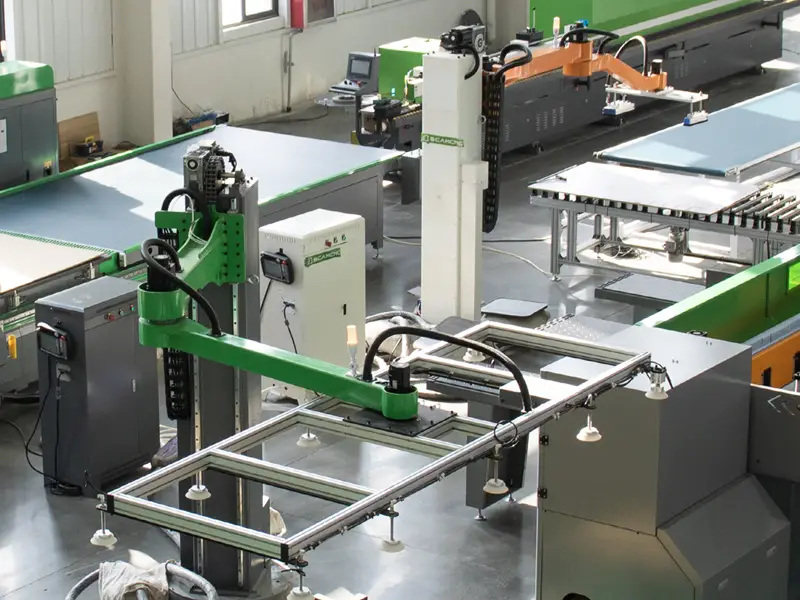

The Vacuum Lifting Equipment for Woodworking is widely used in panel furniture, cabinet manufacturing, and wooden door production, especially in operations that involve CNC routers and automated production lines.
Heavy Duty Vacuum Lifting Equipment for Woodworking and CNC Loading

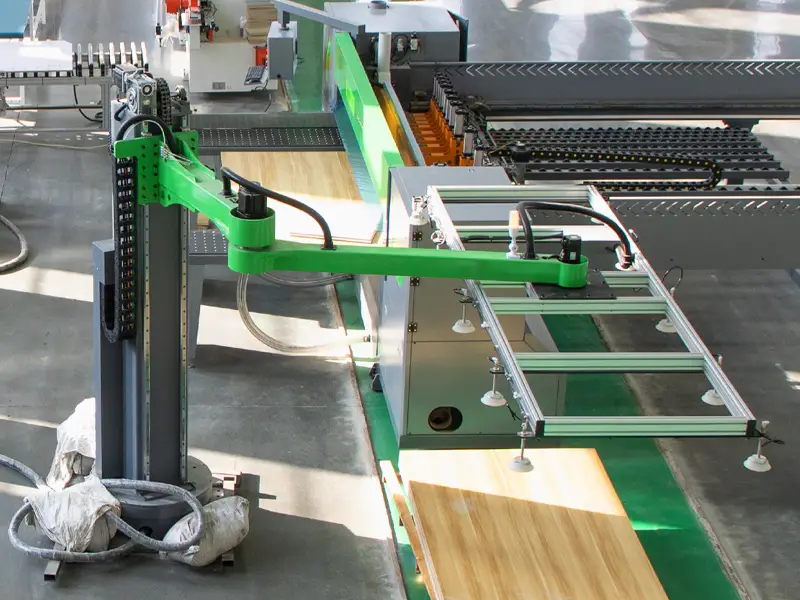

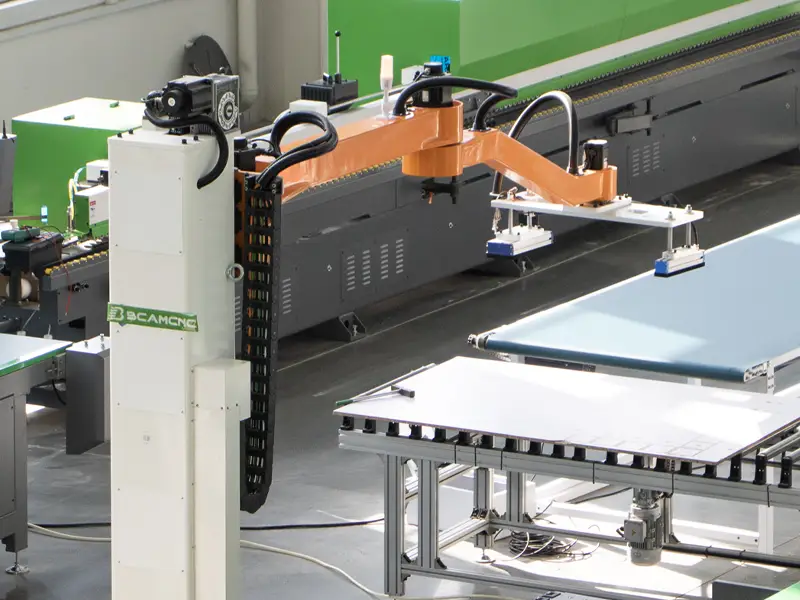

Handling large MDF or plywood panels manually can slow down production and increase safety risks. Our Vacuum Lifting Equipment for Woodworking provides a reliable and efficient way to assist CNC router loading and unloading.
Key advantages include:
One-person panel handling
Stable lifting of large and heavy wood panels
Accurate positioning for CNC machining
Reduced labor intensity and workplace injuries
This system works seamlessly as a vacuum panel lifter and can be integrated into a complete CNC loading and unloading system.
Compatible with MDF, Plywood, and Laminated Panels
The Vacuum Lifting Equipment for Woodworking is suitable for a wide range of commonly used woodworking materials, including:
MDF panels
Plywood
Particle board
Laminated and coated boards
With flexible suction cup layouts and strong vacuum pumps, this industrial vacuum lifting system ensures reliable holding force without damaging panel surfaces.
Applications in Furniture, Cabinet, and Door Production
Our Vacuum Lifting Equipment for Woodworking is widely applied in different furniture manufacturing scenarios:
Panel furniture production lines
Custom cabinet manufacturing
Wooden door processing lines
CNC nesting and cutting centers
Whether used as a standalone vacuum lifting machine or integrated into an automatic production line, it helps optimize material flow and improve overall production efficiency.
Vacuum Lifting Equipment for Woodworking vs. Manual Handling
Compared with traditional manual panel handling, Vacuum Lifting Equipment for Woodworking offers clear operational advantages:
Key Features of Our Vacuum Lifting Equipment for Woodworking
Heavy duty vacuum pump for stable lifting
Flexible suction cup configuration
Easy operation and low maintenance
Compatible with CNC routers and woodworking machines
Suitable for semi-automatic and automatic production lines
This vacuum lifting system for wood panels is designed for long-term industrial use in demanding production environments.
Customized Vacuum Lifting Solutions for Woodworking Factories
Every furniture factory has different panel sizes, layouts, and automation requirements. We provide customized Vacuum Lifting Equipment for Woodworking to match your CNC machines, workshop layout, and production capacity.
From simple manual-assist lifters to fully automatic panel handling systems for CNC routers, our solutions are engineered to support efficient and scalable furniture production.
Technical Specifications – Vacuum Lifting Equipment for Woodworking
Installation Requirement:
Concrete ground thickness ≥ 200 mm
Operating System
Control Mode: Button valve for suction and release
Suction / Release Time: < 3 seconds
Power Distribution: Compressed air system
Equipment Model & Key Data
Device Model: BC500-6S
Maximum Load: 500 kg
Equipment Dimensions: 2000 × 800 mm
Equipment Weight: Approx. 120 kg
Design Standards & Safety
Our Vacuum Lifting Equipment for Woodworking is designed and manufactured in strict accordance with international standards:
EN 13155:2016 (CE Standard)
ASME B30.20-2006
German UVV18
Safety Design Highlights:
Structural safety factor: 4.0
Minimum safety vacuum level: 65%
Harmony internal standard: 85% (20% higher than standard requirement)
Factory Inspection & Quality Control
General Inspection
Appearance condition (painting, scratches)
Suction cup integrity
Pipeline and connection inspection
Pre-shipment Testing
Suction performance test
Pressure holding test
Alarm system test
Control system inspection (buttons, electrical components)
After-Sales Service
We provide professional and reliable after-sales support for all vacuum lifting equipment:
Warranty: 2 years
Free replacement of non-artificial damaged parts during warranty
Lifetime free maintenance support
Lifetime online video guidance
24/7 technical support availability
Get a Quote for Vacuum Lifting Equipment for Woodworking
If you are looking for a reliable and heavy-duty solution to improve material handling efficiency, our Vacuum Lifting Equipment for Woodworking is ready to support your production needs.
Contact us today to receive a customized configuration and quotation for your application.
