Professional 5 Axis CNC Router Woodworking 1325 for Foam Mould
High-Rigidity 5 Axis CNC Solution for Molds, Aluminum, and Composite Material Machining
Last Updated: 2025-10-13
D Series – Durable 5 Axis CNC Router
Heavy-duty 5 axis CNC router for aluminum, tooling board, resin, composite materials, and soft metal machining. Ideal for mold making and high-precision 3D surface processing with excellent rigidity and stability. Optional dual working tables improve production efficiency. Widely used in automotive molds, composite tooling, and industrial model manufacturing.
1.High-Performance Core Configuration
Control System: Taiwan Syntec 610MA-E5 CNC system with RTCP (Rotational Tool Center Point) functionality, featuring:
WindowsCE interface for real-time 3D dynamic simulation, machining path visualization, and fault diagnostics—ideal for 5 axis CNC woodworking and CNC wood router projects.
ISO-standard G-code compatibility (supports MasterCAM, UG, etc.) for smooth operation on CNC router machines for wood CNC applications.
Drive & Motion:
AC Axes & Spindle: Italian Hiteco AC rotary axes + HSK F63 liquid-cooled spindle (high-speed, high-precision), perfect for 5 axis wood CNC machining.
Motors & Drives: Yaskawa servos+ Delta MS inverter (brake resistor included).
Transmission: TBI 35mm square linear guides (Y-axis with dust-proof wings), XYZ ball screw drives, moving-table design, ensuring stable operation for industrial wood routers and CNC woodworking machinery.
2. Robust Structural Design
Frame: Welded steel bed (12mm+ thickness) + standard steel gantry/welded iron columns for vibration damping, supporting heavy-duty 5 axis wood router tasks.
Tool Changer: 8-station carousel (customizable capacity) for automated, efficient tool switching in CNC wood router machines.
Z-Axis: Standard 800mm height for extended workpiece clearance, ideal for large-format CNC router for wood working.
3. Precision & Stability Features
5 Axis Head Options:
90° vertical head: Optimized for wood and soft metals—perfect for 5 axis CNC router woodworking.
50° tilting head: For hard metal machining (HSK spindle interface), suitable for CNC router aluminum cutting.
Compensation Technologies:
Volumetric 3D Laser Compensation: Pre-delivery calibration for accurate 3D workspace—essential for 5 axis CNC router woodworking projects.
Linear Compensation: Corrects component variances during assembly.
Fixture Placement Compensation: Automated program alignment via 3 reference points.
Constant Tip Speed: Synchronizes rotary/linear axes for uniform cutting speed in industrial CNC routers.
4. Quality Assurance & Certifications
Metrology Equipment: Renishaw laser interferometer, ballbar, wireless calibration tools; Leica laser tracker; XSpect CMM.
End-to-End QC: Covers supplier materials, machining, assembly, and final inspection-ensuring top performance for CNC woodworking machines and 5 axis wood CNC machines.
5. Material Versatility Compatible Materials: Wood, composites, acrylic, plastic, foam, and aluminum (soft metals).This large-format 5-axis CNC wood router is specially designed for high-precision machining of oversized wooden panels, molds, furniture components, and complex 3D surfaces. It offers exceptional performance in wood CNC machining, acrylic cutting, and aluminum routing applications.
6. Operational Efficiency
Dry Transformer: Energy-efficient power supply.
Dual-Table Design (Optional): Enables continuous production—ideal for small-to-medium workpieces in CNC wood router machines and mold CNC routing projects..
BCAMCNC 5 Axis Milling CNC Wood Router Machine 3D Mold Sculpture Making Machine Specifications
X,Y,Z Working Area
BCM1325D – 5axis 1.3m x 2.5m (4′ × 8′ ft)
BCM1530D – 5axis 1.5m × 3.0m ( 5′ × 10′ ft)
BCM2030D – 5axis 2.0m × 3.0m (6′ × 10′ ft)
BCM2540D – 5axis 2.5m × 4.0m (8′ × 13′ ft)
BCM3060D – 5axis 3.0m × 6.0m (10′ × 20′ ft)
BCM4080D – 5axis 4.0m × 8.0m (13′ × 26′ ft)
BCM60120D – 5axis 6.0m × 12m+ (20′ × 40′ ft)
Spindle Power
Italy HITECO water cooling spindle
X,Y,Z Traveling Positioning Accuracy
±0.05
Repeat positioning accuracy
±0.05mm/1000mm
Table Surface
Vacuum table+T-solt table
X,Y,Z Rail and Trasmission
X Y Z axis screw drive
Max. Rapid Travel Rate
20m/min
Max. Working Speed
10m/min(Calculated based on the material 8 meters of foam)

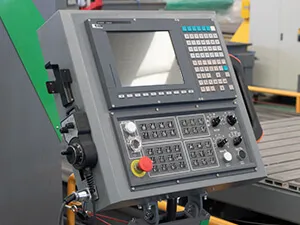

The control system of BCM-5 axis adopts the more advanced Taiwan Syntec system 610MA, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and Network, greatly increasing the intelligence of the device.
Italian HITECO Water
Electrospindle with 8-position
Automatic Tool Changer(ISO30).
Feed Rate:
X Axis 3150ipm(80mpm)
Y Axis 3150ipm(80mpm)
Z Axis 735ipm(18.7mpm)
Y Axis 3150ipm(80mpm)
A and C Axes 82.5 degree/sec
Acc/Dec 205in/sec2
Axis Travel
BCM1325 5 AXIS 1300*2500*800MM
A Axis ±120°
C Axis ±213°
Cast Iron table with highest accuracyand durable quality , it will not change during working Aviation aluminum vacuum countertop/cast iron countertop are available for optional ,Support customization of special tooling fixtures according to processed products
Tool Changer
Quantity 8 tools
Max Diameter 3.25″ (82mm)
positions full; 6.5″ (165mm) adjacent
positions empty
Max Weight
12 lbs each / 96 lbs
total (5.4kg / 43.5kg)
Max Length
11″ (280mm)
Auto lubricating system, one touch can finish periodic maintenance easily
World-class servo motor and driving
system ensures machine to run with
fast speed and low noise
Safety Line
Emergency stop and safety protection along the working area for operator security during CNC router and 5 axis foam mold machining.
Dust cover for X Axis
Protects linear guides and ball screws from dust and debris, ensuring long-term precision in 5 axis CNC router woodworking.
Tool Lock
Secure tool holding system for stable cutting and safe tool change during 5 axis CNC wood routing.
Service & Support for BCAMCNC 5 Axis Wood Machine for 3D Relief and Cutting
At BCAMCNC, we are committed to expanding our brand awareness and enhancing our corporate image by upholding the principles of “pursuing excellence in quality and customer satisfaction”. Our standards—superior product quality, exceptional service and support, and rigorous corporate management—ensure a seamless and trustworthy partnership with our clients investing in 5 axis CNC routers, 5 axis wood routers, and CNC wood machines.
1.Quality Assurance
Transparent Manufacturing Process: We invite you to inspect the entire production process on-site or via live video streaming, ensuring full visibility into our manufacturing excellence. You can also test the machine’s performance firsthand before shipment.
Comprehensive Quality Records: Detailed inspection reports and production data for 5 axis CNC wood routers and and composite material CNC routers are available upon request.
Strict Packaging Standards: All 5 axis CNC router woodworking undergo rigorous quality checks before being securely packed and shipped.
2.Competitive & Value-Driven Pricing
Affordable Without Compromise: BCAMCNC offers the most competitive pricing for 5 axis CNC wood machines without sacrificing technical performance or component quality.
Premium Materials: To guarantee long-term durability and stability for CNC woodworking machines, mold-making routers, and composite material processing..
3.Efficient & Reliable Delivery
Complete Documentation: Every delivery of a 5 axis CNC wood router includes:
Step-by-step instructional guides & setup videos for 5 axis CNC router woodworking machine operation
Comprehensive technical maintenance & repair manuals for CNC woodworking machines.
List of wear-resistant parts & optional accessories
Flexible Lead Times: Standard shipping takes 15-30 days, but we prioritize expedited production for urgent requests, ensuring rapid deployment of CNC wood machines.
D Series 5-Axis CNC Router Case Study: Cutting Automotive PE Sheets
A leading automotive parts manufacturer needed precise cutting of PE (polyethylene) sheets for car interior panels. Traditional cutting methods were slow, and maintaining dimensional accuracy on large curved surfaces was challenging.
Challenges
Large automotive PE sheets with complex curves and contours
High precision required for assembly fitment (tolerance ≤0.05mm)
Traditional 2D or 3-axis routers required multiple setups and manual adjustments
High volume production demand
Solution
The customer selected the BCAMCNC D Series 5-Axis CNC Router. Key advantages:
5-Axis Simultaneous Machining: Cuts complex curves in one setup, eliminating multiple re-clampings
CE Certification – Complies with EU machinery safety directives
ISO 9001 – Certified quality management system
