Automate Your Production with Industry-Leading ATC Technology

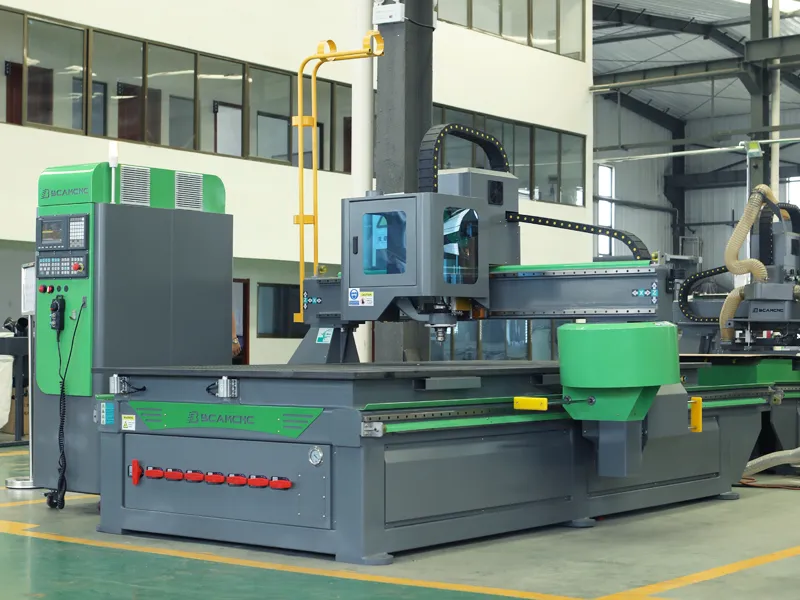

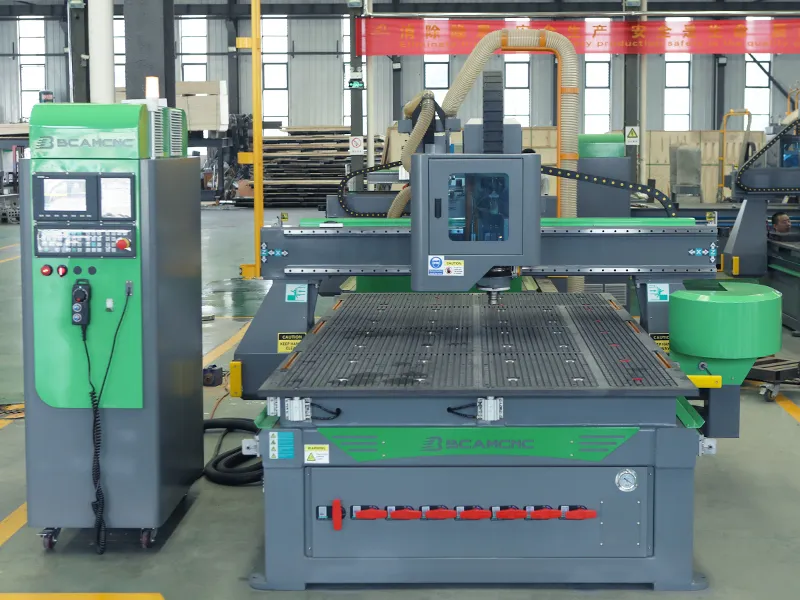

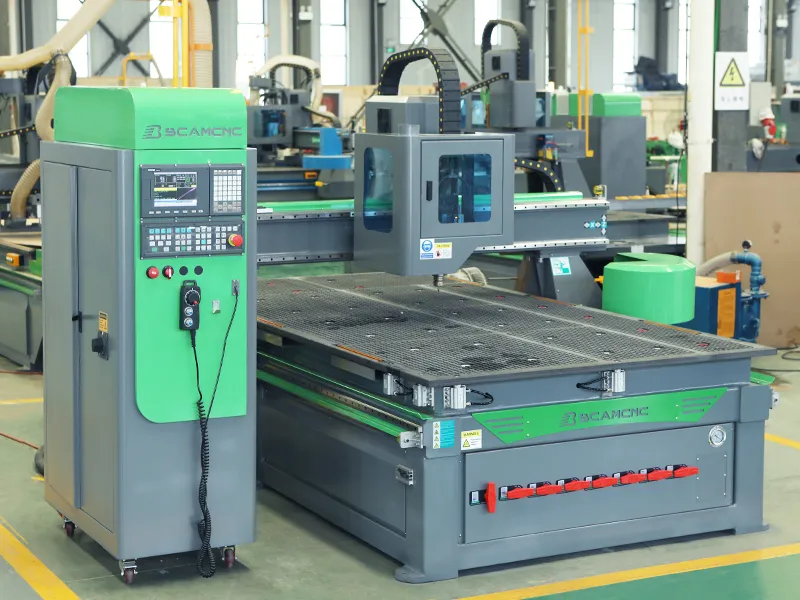

The BCAM D Series Disc ATC CNC Wood Router is engineered for high-efficiency manufacturing, offering automatic tool changing (ATC) to streamline workflows for furniture, cabinetry, doors, and complex machining. Equipped with a servo-driven disc changer (8/10/12/16 slots), it delivers faster, error-free tool swaps, reducing downtime and boosting productivity.
1.Unmatched Efficiency with Automatic Tool Changer (ATC)
2.Industrial-Grade Performance, Affordable Price
3.Built for Your Business Growth
• CE standard
• Italian HSD 9.5KW(12HP) Electro spindle with 12-position Automatic Tool Changer(ISO30)
• 12mm Heavy duty body
• Active safety system
• Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screwd transmission 25mm Heavy-duty Hiwin HG Series linear bearing
• Vacuum table+T-solts
• Taiwan Syntec 60W-E
• Japan Yaskawa servo motor and drivers system
• Delta brand VFD-B variable frequency drive
• 12 Position Automatic Carousel Tool Changer (options:more position)
• Tool Cone Holder-for easy bit changing
• Solid State limit switches
| Parameters | Standard Specifications BCM1325D |
| X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
| Optional Working Area | 1300*1300*200mm|4*4ft 1500*3000*200mm|5*10ft 2000*3000*200mm|6*10ft 2000*4000*200mm|6*13ft 2000*6000*200mm|6*20ft |
| Spindle Power | 9kw Italy HSD air cooling spindle |
| X,Y,Z Traveling Positioning Accuracy | ±0.02/2000mm |
| Table Surface | Vacuum table+T-solt table |
| X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
| Max. Rapid Travel Rate | 90m/min |
| Max. Working Speed | 70m/min |
| Cutting thickness | According materials |
| Spindle Speed | 6000-24000RPM |
| Drive Motors | Japanese Yaskawa servo motor and drivers |
| Working Voltage | AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ |
| Command Language | G Code |
| Operating System | Taiwan Syntec 60W-E control system |
| Interface | USB |
| Software Compatibility | Option:BCAMPro/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc. |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |

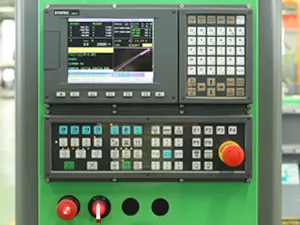

| The control system of BCM1325D adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and Network, greatly increasing the intelligence of the device. |
 |
 |
 |
 |

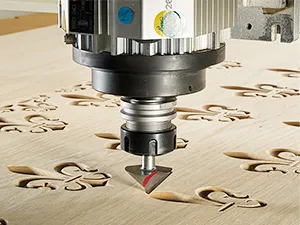

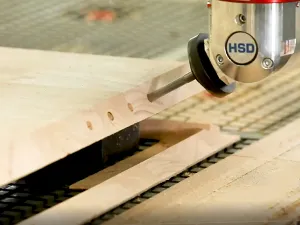

BCM1325D selects Italian HSD air-cooled spindle, power range: 3.0KW-6.5KW. Choose from manual, quick-release, high power and high-speed spindles for optimum processing of rigid sheet materials. |

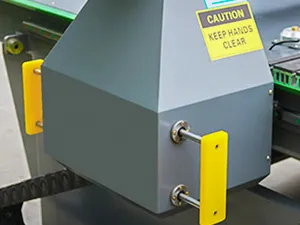

| BCM1325D series also has the unique safety protection system of BCAM products, providing external emergency stop function for equipment users. This function can effectively protect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users. |
|
 |
 |
|

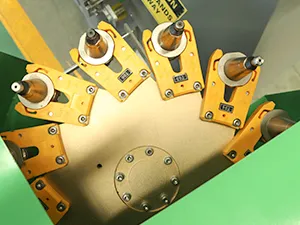

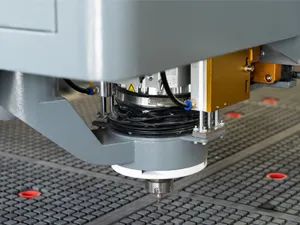

BCM1325D series is a CNC wood router designed by BCAM for automatic disc changer. Eliminating cumbersome manual tool changes, it shortens tool change time and makes the CNC router more precise. |

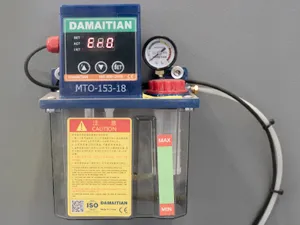

| Auto lubricating system, one touch can finish periodic maintenance easily. | |
 |
 |
|

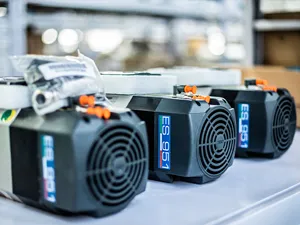

world-class servo motor and driving system ensures machine to run with fast speed and low noise. |
1.Versatile Material Processing
The D-Series CNC Wood Router is engineered to handle a vast range of materials with precision:
2. Multi-Industry Applications

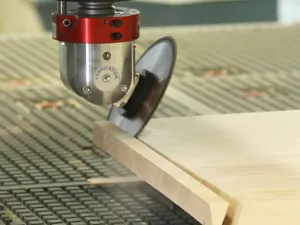

Cabinet & Furniture Manufacturing: The CNC Router handles doors, drawers, countertops, and shelves with high-speed machining for intricate profiles and joinery (e.g., dovetails). Nesting software ensures material efficiency and reduced waste.
Signage & Digital Finishing: This CNC Wood Router enables all-in-one production—switch seamlessly between aluminum letters, dimensional signage, and vinyl graphics in a single day. Advanced tooling includes oscillating knives (for corrugated plastics) and tangential blades (for rigid materials).
Cladding & Panel Fabrication: Large-scale CNC Router processing supports full-sheet handling (up to 78″ x 196″), reducing panel damage risks and saving labor through automated drilling, notching, and cutting.
3.Advanced Productivity Features
4. Software & Efficiency
5. Competitive Advantages
1. Linear Tool Changer
Pros:
Cons:
2. Disc (Carousel) Tool Changer
Pros:
Cons:
3. Key Decision Factors
4. Final Recommendation
At BCAMCNC, we are committed to expanding our brand awareness and enhancing our corporate image by upholding the principles of “pursuing excellence in quality and customer satisfaction.” Our standards—superior product quality, exceptional service and support, and rigorous corporate management—ensure a seamless and trustworthy partnership with our clients in the woodworking machinery industry.
1. Quality Assurance
2. Competitive & Value-Driven Pricing
3. Efficient & Reliable Delivery
Customers Say – Don’t take our words as everything. Find out what customers say about our products and services they have purchased, owned or experienced.
Finally, a 5-axis that understands wood! The F-PTP’s low-RPM/high-torque spindle prevents walnut tear-out, and the dust extraction ports are RIGHT where chips fly. We produce Baroque-style chair legs with undercuts in one setup. BCAMCNC even sent custom clamping jigs for our odd-shaped blanks.
We’ve been running the BCAMCNC edge bander in our mid-sized cabinet shop for about 5 months now. It’s not perfect – we had to tweak the glue temperature settings for thicker ABS edges – but once dialed in, it’s been solid. The automatic corner trimming works about 90% of the time (still needs occasional manual touch-ups on tricky curved pieces). What really stands out is the build quality – no loose components after daily 8-hour shifts like we experienced with our previous machine. For the price point, it’s been a reliable workhorse that’s cut our edge banding time by nearly half
Absolutely outstanding work! We partnered with BCAMCNC for a complex 5-axis CNC router mold, and the results exceeded our expectations. The precision, surface finish, and attention to detail were flawless—exactly what we needed for our high-tolerance production. The team was responsive, professional, and delivered ahead of schedule. Highly recommend for anyone needing top-tier CNC machining!
As a first-time CNC user, I was initially daunted by the learning curve—but the BCAMCNC ATC CNC Router quickly proved to be the ideal machine to start my journey. Its heavy-duty construction delivers exceptional rigidity, far surpassing standard CNC routers, which translates to cleaner cuts and smoother operation, especially in metalwork.
Perfect for sign-making! The 15kW spindle powers through 50mm acrylic without chipping. The auto-calibration feature is genius and the 12-tool magazine handles all our bits. BCAMCNC shipped it with spare parts (belts, nozzles) which was a nice touch.
Our workshop specializes in carbon steel and aluminum fabrication, and the BCAMCNC fiber laser cutter has exceeded expectations! It delivers razor-sharp cuts on 1-20mm carbon steel and 0.5-15mm aluminum with impressive speed (±0.05mm precision). The intuitive interface reduced operator training time by 40%, while the sealed cutting head minimizes oxidation on aluminum. Maintenance is surprisingly simple – just weekly lens cleaning. After 6 months of heavy use, it remains our most reliable investment for aerospace-grade results.
The robotic arms in our production line handle 4’x8′ MDF sheets with flawless precision, enabling seamless material handling around the clock. Thanks to this automation, our night shift now operates entirely unattended—boosting productivity while reducing labor costs. The 5+4 drilling head configuration has revolutionized our cabinet manufacturing process, delivering unmatched speed and accuracy for complex drilling patterns. BCAMCNC went above and beyond by customizing their CNC software to integrate perfectly with our ERP system, ensuring real-time data synchronization and streamlined workflow management.
The BCM-1325SA manual-change CNC router delivers exceptional efficiency for custom furniture joints, proving that advanced automation isn’t always necessary. Its ergonomic tool rack is positioned right beside the workspace, eliminating wasted movement and maximizing productivity. Despite costing $8K less than auto-change models, it maintains impressive ±0.2mm accuracy—ideal for precision woodworking. This balance of cost savings, thoughtful design, and reliability makes it a standout choice for small to mid-scale furniture production.
I wanted a CNC router for woodworking, as well as a drag knife for cutting foam, cardboard, rubber, and some sealing materials, so I ordered the BCM2030C and so I did not have to purchase two machines. So far everything is running as expected. The only issue was the controller switching, so I reached out to BCAMCNC tech support and they were responsive and did an excellent job of diagnosing and debugging the software in a timely fashion.
The BCAM CNC Router has completely elevated our custom furniture production! Its precision carving brings even the most intricate oak and MDF designs to life with flawless detail, while the industrial-grade vacuum table ensures razor-thin panels stay perfectly stable during machining. The integrated dust extraction system has revolutionized our workspace – no more post-job cleanups or airborne particles. Whether we’re crafting high-end cabinetry or delicate decorative inlays, this machine delivers museum-quality results every time. An absolute game-changer for woodshops serious about quality and efficiency!
