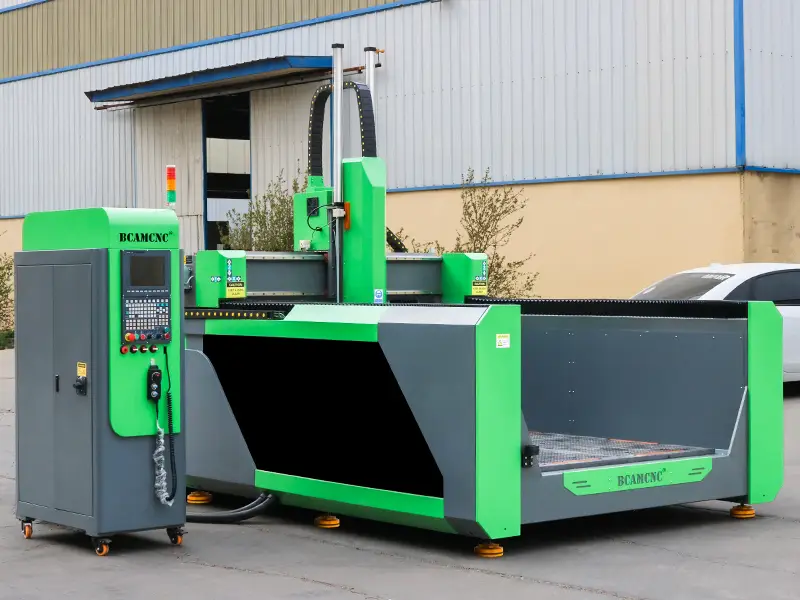

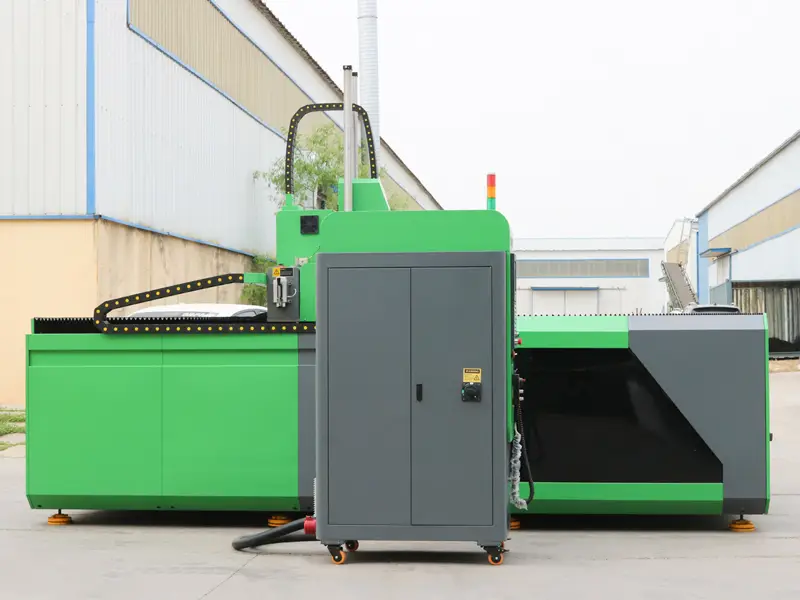

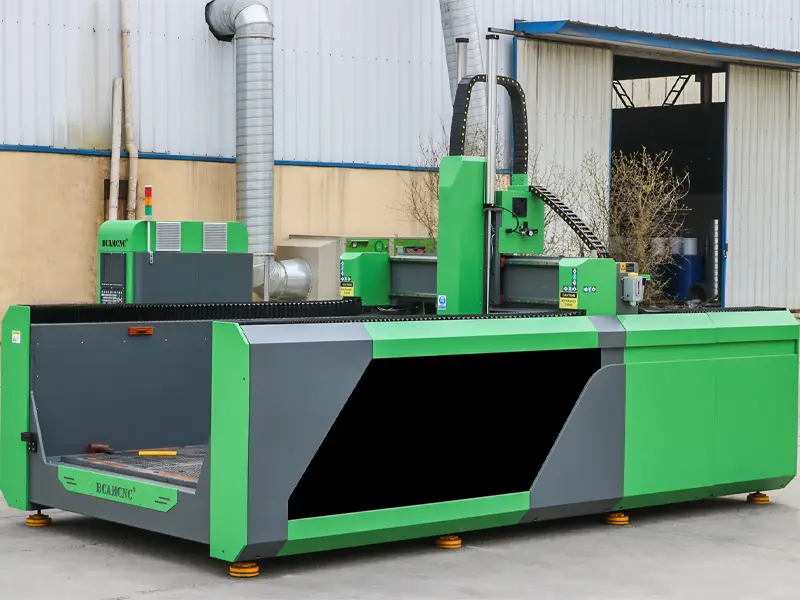

The BCAM down-sunk table 4 axis CNC router is engineered for manufacturers who need more flexibility, higher accuracy, and stable performance for 3D work. Its recessed table design provides extra vertical space, making it ideal for large foam blocks, tall molds, multi-layer panels, and deep cavity machining without spindle interference. With a ±90° swing spindle and industrial-grade components, it delivers smooth motion, clean edges, and reliable results in continuous production.
Here are the key advantages that make this model a powerful and cost-effective 4-axis solution for modern workshops:
1. Down-Sunk Table for Deeper and More Stable Machining
The recessed table design provides a lower working position, giving the spindle more clearance to process:
The lowered center of mass also reduces vibration, ensuring strong stability during high-speed machining.
2. True ±90° 4-Axis Rotation for Complex 3D Jobs
Equipped with an Italian HSD spindle that rotates ±90°, this 4 axis CNC router performs advanced tasks that standard 3-axis machines cannot achieve:
This makes it a perfect solution for foam mold manufacturing, furniture components, artistic sculptures, industrial models, and prototype production.
3. 10mm Heavy-Duty Steel Frame for Long-Term Accuracy
The machine body is constructed from thick, welded steel that has been stress-relieved for maximum rigidity.
Benefits include:
It is built to run continuously in professional workshop environments.
4. More Affordable Than a 5-Axis Machine, but Powerful Enough for 3D Work
The down-sunk table design and ±90° spindle provide many of the functions of a 5-axis CNC at a fraction of the cost.
You get:
This makes the machine a smart choice for businesses that need 3D capability without the heavy investment of a full 5-axis system.
5. Industrial Transmission for High Speed and Smooth Motion
To ensure fast and stable production, the router uses:
These components provide:
Perfect for wood, MDF, acrylic, foam, composite panels, and more.
6. Automatic Tool Changer for Continuous Workflow
With an 8-position linear ATC (expandable), the machine automatically switches tools during machining.
Advantages include:
Ideal for cabinet manufacturing, mold making, 3D carving, and large-batch production.
7. Syntec Control + Yaskawa Servo System for Reliable Performance
This router is powered by:
You get:
It maintains high precision even during long, complex jobs.
8. Hybrid Vacuum & T-Slot Table for Flexible Workholding
The combination of vacuum suction and T-slot clamping allows you to secure both sheet materials and irregular workpieces.
Benefits include:
| Parameters | Standard Specifications BCM1325C-4 axis |
| X,Y,Z Working Area | 1300*2500*400mm|4′*8′ |
| Optional Working Area | 1300*1300*400mm|4′*4′ |
| 1500*3000*400mm|5′*10′ | |
| 2000*3000*400mm|6′*10′ | |
| 2000*4000*400mm|6′*13′ | |
| 2000*6000*400mm|6′*20′ | |
| Spindle Power | 9kw Italy HSD air cooling spindle ±90° |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/2000mm |
| Table Surface | Vacuum table+Intergrated T-solt table clamping System |
| X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
| Max. Rapid Travel Rate | 80m/min |
| Max. Working Speed | 60m/min |
| Cutting thickness | According materials |
| Spindle Speed | 6000-24000RPM |
| Drive Motors | Japanese Yaskawa Servo Drive System |
| Working Voltage | AC380v/50HZ/3 phase |
| Command Language | G Code |
| Operating System | Taiwan Syntec 60WE control system |
| Interface | USB |
| Software Compatibility | Option:VCarve/VCarve Pro/ArtCAM/UCANCAM,etc. |
 |
 |

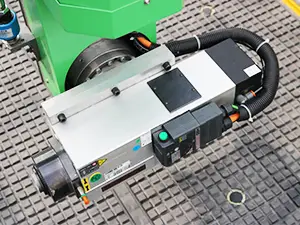

Italian HSD 9.5KW(12HP) Electrospindle ±90° with 8-position Automatic Tool Changer(ISO30) |
| Tools sensor High accuracy, long service time, steady movement and good starting performance |  |
 |
 |
|
High speed slider brand is Hiwin, it has 4 rows of steel balls inside , modle is new type CG-25 with dust-proof function, it has longer life compare with 2 rows steel balls slider. 4 rows can keep machine working speed very fast, keep stable and high torque. |
| Syntec 60WE controller—enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. | |
 |
 |
|

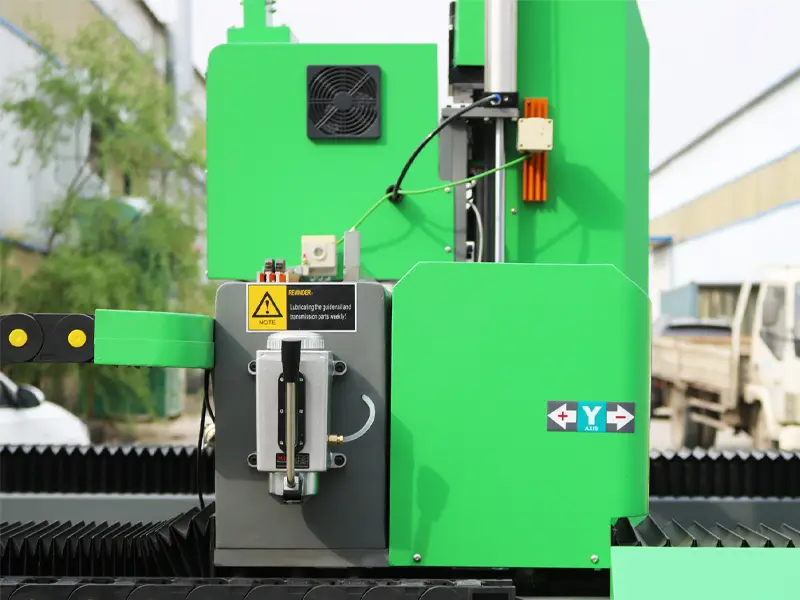

Auto lubricating system, one touch can finish periodic maintenance easily |
| world-class Japan Yaskawa servo motor and driving system ensures machine to run with fast speed and low noise | |
 |
 |
|
Unique auto tool changer system can change tools alternatively, tool sensor to compensate the tolerance of tool length |
| Category | Standard 4-Axis CNC Router | Down-Sunk Table 4-Axis CNC Router |
|---|---|---|
| Vertical Machining Space | Limited Z height on a flat table | Extra Z clearance with recessed table for tall or deep parts |
| 3D Machining Capability | Suitable for normal 3D carving and angled cutting | Better for large 3D molds, deep cavities, and tall foam blocks |
| Workpiece Size Compatibility | Ideal for medium-sized materials | Supports oversized, thick, and multi-layer materials |
| Stability During Heavy Cutting | Good for light–medium 3D milling | Reinforced structure for deep cutting with lower vibration |
| Production Efficiency | More re-clamping for deep parts | Fewer setups; handles deep areas without flipping the workpiece |
| Typical Applications | Furniture parts, decorative panels, 3D reliefs | Molding, automotive foam models, sculptures, large prototypes |
| Cost Level | More economical | Slightly higher cost but close to 5-axis performance |
Our down-sunk table 4 axis CNC router is already used by customers in woodworking, foam modeling, automotive prototyping, and sign-making industries. Below are selected customer cases showing how the machine improves daily production:
These cases demonstrate how the recessed table design helps customers handle larger, deeper, and more complex projects with greater stability and accuracy.
The BCAM down-sunk table 4 axis CNC router supports a wide variety of materials used across different manufacturing fields:
Its powerful spindle, stable structure, and advanced control system ensure smooth cutting performance even on tall or complex materials.
For visitors who want a quick summary, this section helps them understand the key strengths instantly:
This section can also be paired with icons for better visual impact.
Choosing the right 4 axis CNC router is not only about specifications—it’s also about long-term value. BCAM offers:
Our goal is to deliver machines that are stable, durable, and easy to use for all industries.
Q1: Why choose a down-sunk table instead of a standard 4 axis CNC router?
A down-sunk table offers extra Z space, ideal for tall molds, deep cavities, and oversized foam blocks.
Q2: Can this machine replace a 5-axis CNC router?
For many mold and foam applications, yes. It provides similar machining height at a much lower cost.
But for undercuts and highly complex angles, a full 5-axis is still necessary.
Q3:What is the main difference between a down-sunk table and a standard 4 axis CNC router?
A down-sunk table provides extra vertical machining height, allowing the spindle to move deeper without hitting the material. This makes it ideal for tall foam blocks, deep molds, and large 3D structures.
Q4:Does it support automatic tool changing?
Yes. It is equipped with an 8-position linear ATC (options available for more positions), allowing fast and precise tool changes during multi-step machining.
Q5:Can the machine be customized?
Yes. BCAM offers custom table sizes, longer Z-axis, rotary attachments, additional ATC positions, dust collection systems, and more to match your production needs.
Q6:What after-sales service does BCAM provide?
We offer global technical support, online troubleshooting, operation training, spare parts supply, and long-term maintenance guidance. Local service partners are available in many countries.
Q7:How long is the machine’s lifespan with regular use?
With proper maintenance, the core components—HSD spindle, Hiwin guides, and Yaskawa motors—can last many years, often over 8–10 years in typical factory use.
