Original price was: $1,469.00.$1,427.00Current price is: $1,427.00.

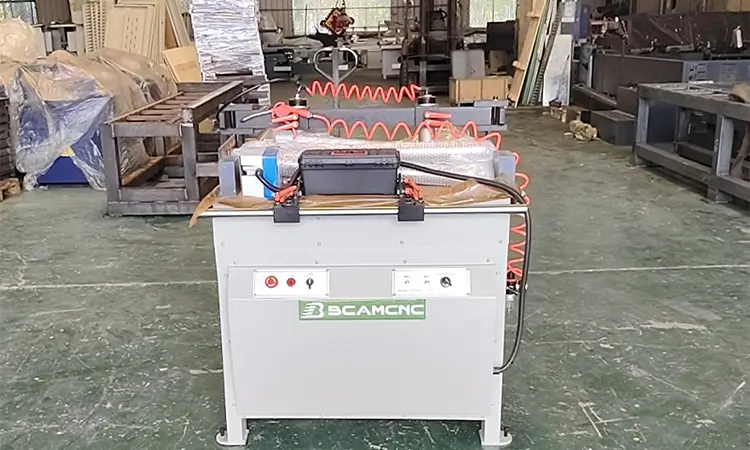

The BCM-Z1A Woodworking Boring Machine is designed for modern furniture factories, cabinet workshops, and panel processing plants that require fast, accurate, and repeatable drilling performance under the international 32mm system.
Built with a reinforced industrial structure, precision-ground 21-spindle drill row, and pneumatic clamping system, this machine helps manufacturers eliminate manual positioning errors, reduce production downtime, and improve drilling consistency across every production batch.
Whether you are producing kitchen cabinets, wardrobes, office furniture, or customized panel furniture, the BCM-Z1A Woodworking Boring Machine delivers stable drilling accuracy for MDF, melamine board, plywood, particle board, and solid wood panels.
The machine supports horizontal, vertical, and 45-degree drilling adjustment, making it ideal for both standard furniture production and flexible custom manufacturing environments.
细节图4 woodworking-boring-machine-fast-positioning-system

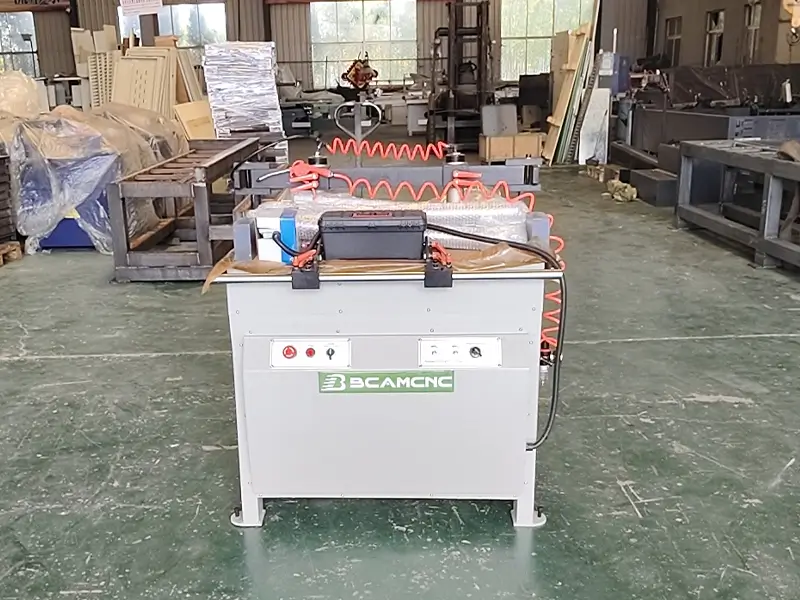

The BCM-Z1A Woodworking Boring Machine adopts a precision 21-spindle drill row based on the standard 32mm drilling system, allowing multiple holes to be processed simultaneously without repeated positioning.
Compared with manual drilling operations, the multi-spindle structure significantly improves production speed and reduces operator workload during cabinet and wardrobe manufacturing.
This drilling structure is especially suitable for:
The precision-ground gear transmission system maintains drilling tolerance within ±0.1mm, ensuring accurate panel alignment during furniture installation.
细节2 woodworking-boring-machine-angle-adjustment
The BCM-Z1A Woodworking Boring Machine supports horizontal, vertical, and 45-degree drilling adjustment for flexible furniture production.
The quick-lock angle adjustment system allows operators to switch drilling directions within seconds, minimizing machine downtime during custom production setups.
This flexible drilling capability is ideal for:
Manufacturers can process multiple drilling applications using one machine instead of purchasing separate horizontal and vertical drilling equipment.
细节图5 woodworking-boring-machine-pneumatic-system
The industrial pneumatic clamping system maintains stable 0.6–0.8 MPa pressure during drilling operations, preventing panel slippage and minimizing melamine edge chipping.
Stable pressure fixing improves drilling consistency while reducing vibration during continuous production.
The reinforced pressure cylinder structure helps operators securely process large furniture panels without repeated manual fixing.
This system is especially important for melamine board and laminated panel processing where edge quality directly affects final furniture appearance.
细节图1 woodworking-boring-machine-working-table
The BCM-Z1A Woodworking Boring Machine is manufactured with a heavy-duty steel machine frame designed for long-hour industrial operation.
The reinforced structure minimizes vibration during drilling cycles, helping maintain drilling accuracy during continuous furniture production.
This industrial-grade machine design improves:
For furniture factories running daily production schedules, machine stability is critical for reducing maintenance interruptions and improving workshop productivity.
| Item | Specification |
|---|---|
| Machine Model | BCM-Z1A |
| Machine Type | Single Row Woodworking Boring Machine |
| Spindle Quantity | 21 Spindles |
| Drilling System | 32mm Standard |
| Drilling Angle | 0° / 45° / 90° |
| Maximum Drilling Diameter | 35 mm |
| Maximum Drilling Depth | 60 mm |
| Working Air Pressure | 0.6 – 0.8 MPa |
| Motor Power | 1.5 KW |
| Motor Speed | 2840 r/min |
| Voltage | 380V / 50HZ / 3PH |

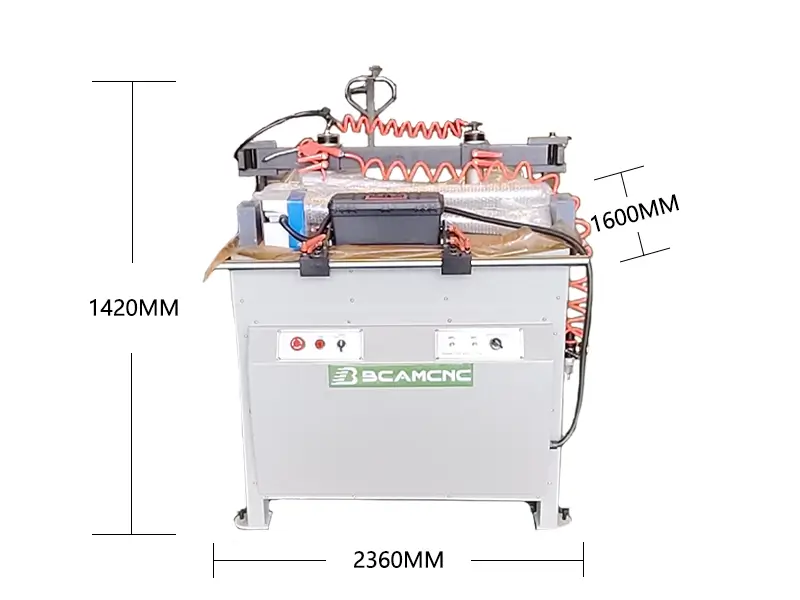

| Machine Size | 2360 × 1600 × 1420 mm |
| Machine Weight | 350 KG |
The drill row uses precision-ground gears and stable transmission components to ensure smooth spindle synchronization during high-speed drilling operations.
The stable gear transmission structure improves drilling consistency while reducing long-term mechanical wear.
The BCM-Z1A Woodworking Boring Machine is equipped with a high-speed pure copper motor designed for continuous industrial woodworking production.
The motor provides stable power output for long-hour drilling operations while improving heat resistance and operational reliability.
The pneumatic system includes industrial-grade cylinders, pressure regulators, and air filter assemblies to maintain stable panel clamping performance during mass production.
The air filter regulator assembly removes moisture and impurities from the air supply system, protecting pneumatic components and ensuring reliable machine operation.
细节3 woodworking-boring-machine-control-panel
The machine integrates industrial electrical components designed for stable factory operation and simplified machine maintenance.
The electrical structure improves workshop safety while reducing unexpected production downtime.
The BCM-Z1A Woodworking Boring Machine is widely used in:
The machine supports both batch production and flexible custom furniture drilling applications.
The BCM-Z1A can efficiently process:
The pneumatic pressure fixing system helps reduce edge damage during laminated panel drilling operations.
The BCM-Z1A Woodworking Boring Machine is commonly used for:
The machine delivers stable drilling alignment for modular furniture systems and precision furniture assembly.
The BCM-Z1A Woodworking Boring Machine is packed using reinforced export packaging designed for long-distance sea transportation.
Standard export protection includes:
This packaging structure helps prevent transportation damage during international delivery.
BCAMCNC supports customized machine configurations according to customer production requirements.
Available customization options include:
Our engineering team can recommend suitable configurations based on your production environment and furniture processing requirements.
BCAMCNC provides professional technical support for global woodworking machinery customers.
Support services include:
The BCM-Z1A Woodworking Boring Machine includes a 1-year warranty for core machine components.
The precision-ground gear transmission system maintains drilling tolerance within ±0.1mm, ensuring accurate alignment for cabinet assembly and modular furniture installation.
The quick-lock angle adjustment structure allows operators to switch between horizontal, vertical, and 45-degree drilling within seconds, minimizing production downtime during custom furniture processing.
The industrial pneumatic clamping system maintains stable panel pressure during drilling operations, reducing vibration and preventing panel movement that may cause melamine edge damage.
Yes. The reinforced steel machine structure and pure copper motor are designed for long-hour industrial operation in furniture factories and panel processing workshops.
Yes. The BCM-Z1A Woodworking Boring Machine supports customized voltage and frequency configurations including 220V, 380V, 415V, 50HZ, and 60HZ according to local electrical standards.
The standard machine package includes standard drill bits. Additional drill bit configurations are available based on customer processing requirements.
Looking for a reliable line boring solution for cabinet and furniture production?
BCAMCNC provides professional woodworking machinery solutions for furniture factories, woodworking workshops, and panel furniture manufacturers worldwide.
Contact our team today to receive:
