Industrial Fixed Lift Platform for Safe, Stable and Efficient Heavy-Duty Lifting
Last Updated: 2026-04-16
Engineered for performance and reliability, this Fixed Lift Platform provides stable lifting for heavy materials in CNC operations, warehouses, and production lines. Featuring a robust scissor structure, powerful hydraulic system, and advanced safety protection, it is the ideal solution for improving efficiency while reducing manual labor.
SALE
Brand
- BCAMCNC
Model
- BCM10-1
Table Size
- 2000*3000mm
$3,480.00Original price was: $3,480.00.$3,329.00Current price is: $3,329.00.
Supplity – 360 Units in Stock Available for Sale Every Month
Standard – Meeting CE Standards in Terms of Quality & Safety
Warranty – One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
In modern manufacturing and logistics environments, efficiency and safety are critical to maintaining productivity. A reliable Fixed Lift Platform provides a stable solution for vertical material handling, reducing manual labor and improving workflow efficiency.

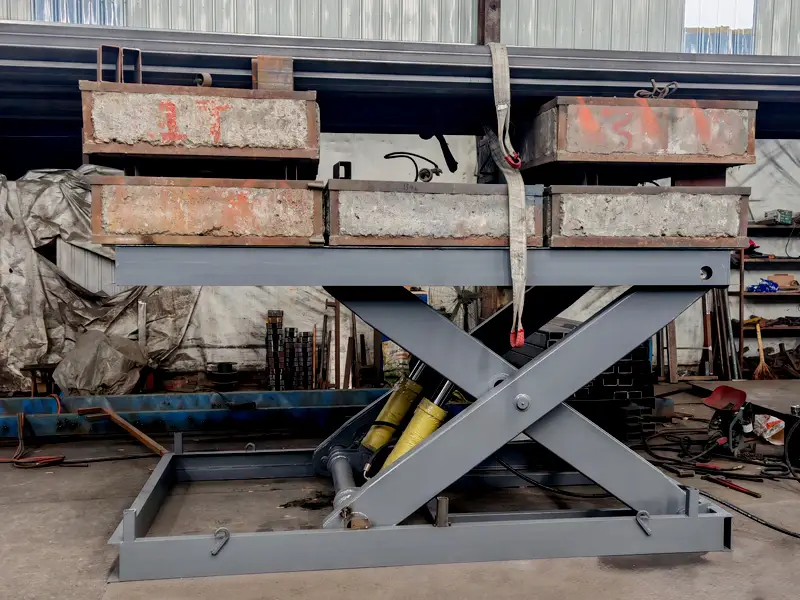

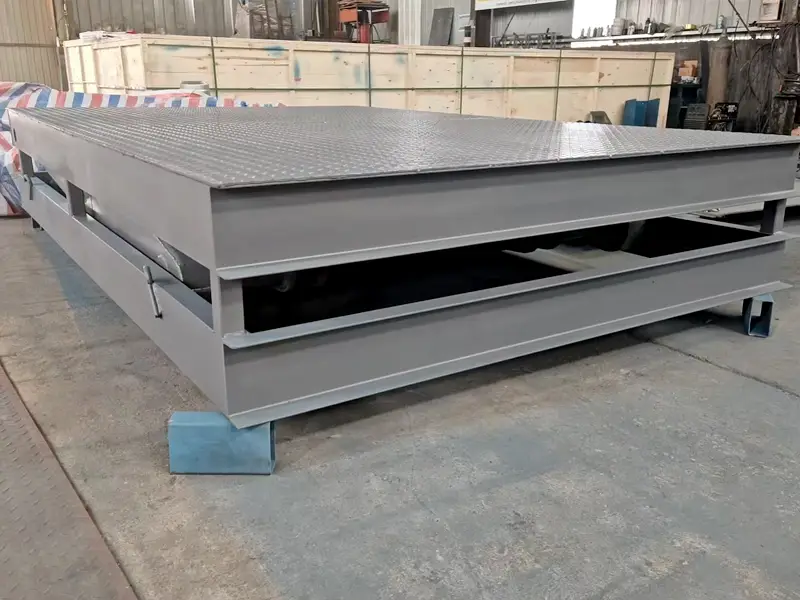

This Fixed Lift Platform is a stationary hydraulic scissor lift platform designed for heavy-duty industrial applications. It is widely used in CNC machining, warehouse logistics, and production lines where consistent lifting performance and structural stability are essential.
Built as a hydraulic scissor lift platform, it ensures smooth lifting, precise positioning, and long-term durability under continuous operation.
Core Structure & Material Advantage
High-Strength Manganese Steel Construction
The structure of this Fixed Lift Platform is manufactured using high-strength manganese steel, providing excellent wear resistance and high load-bearing capacity.
Resistant to deformation under heavy loads
Long service life for high-frequency operations
Reinforced scissor arms for enhanced stability
The scissor mechanism ensures that the platform remains stable and aligned throughout the lifting process.
Hydraulic System & Performance
Advanced Hydraulic Drive System
The Fixed Lift Platform is powered by a high-efficiency hydraulic system designed for smooth and stable lifting.
Stable lifting and lowering movement
Reduced vibration during operation
Optimized hydraulic circulation to prevent overheating
This makes it suitable for continuous industrial use where reliability is critical.
Safety Protection System
To ensure operational safety, the Fixed Lift Platform includes:
Overload protection device

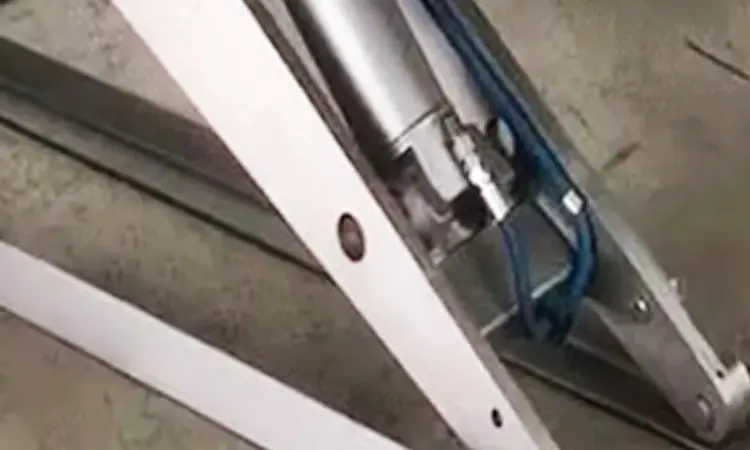

High-pressure hydraulic system with safety valves
Controlled descent mechanism in case of failure
These features prevent sudden drops and protect both operators and materials.
Control System
Wired Remote Control
The platform is equipped with a wired remote control system for real-time operation.
Precise height adjustment
Easy and safe operation
Suitable for industrial environments

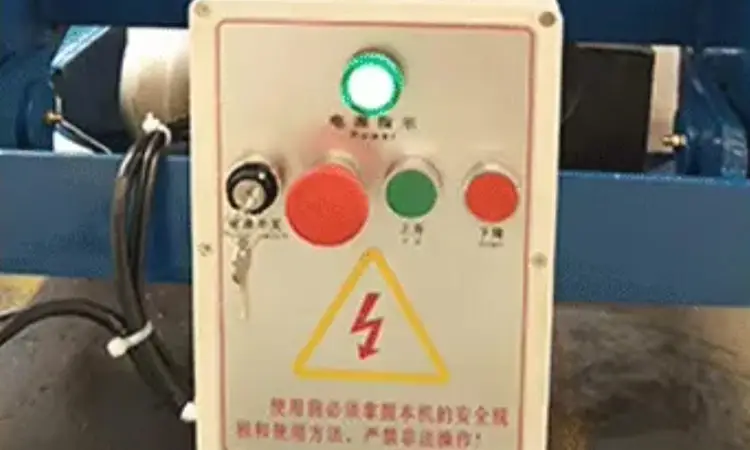

Industrial Electrical Control Box
Push-button control panel
Emergency stop (E-Stop) function
Durable and stable electrical system
Designed for reliability in demanding working conditions.
Technical Data Sheet (Fixed Lift Platform)
Parameter
Specification
Product Type
Fixed Scissor Lift Platform
Load Capacity
10,000 kg (10 Ton)
Platform Size
2000 × 3000 mm
Lifting Height
1000 mm
Power Supply
380V / 3 Phase / 50Hz
Motor Power
4 kW
Platform Plate
6 mm steel plate
Scissor Structure
100 × 250 × 8 mm rectangular tube
Base Frame
Heavy-duty welded steel structure
Hydraulic Cylinder
HSG125 (dual cylinder)
Hydraulic Pressure
2–10 / 43 MPa
Hydraulic Oil
32# anti-wear hydraulic oil
Lifting Speed
3–4 m/min (adjustable)
Control Method
Push-button + wired remote
Safety Features
Overload protection, explosion-proof valve
Customization available for platform size, load capacity, and lifting height.

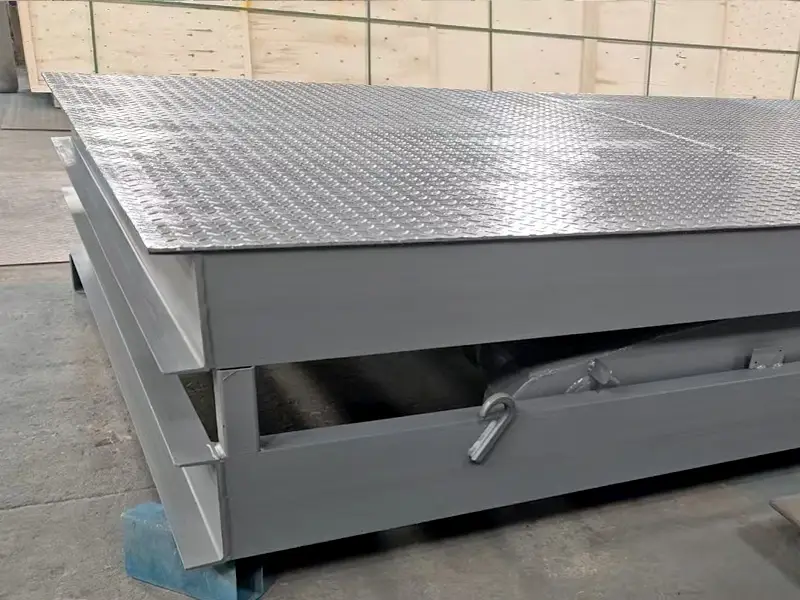

This Fixed Lift Platform is specifically designed to integrate with CNC machines, significantly improving material handling efficiency.
In real production environments, it functions as a CNC loading table, allowing operators to transfer heavy materials directly onto the machine bed.
Reduces manual lifting effort
Improves feeding accuracy
Minimizes material damage
Enhances overall production efficiency
It can be perfectly synchronized with BCAMCNC and other major CNC brands, ensuring seamless material feeding and smooth workflow integration.
If you’re dealing with large panels like MDF, aluminum sheets, or stone slabs, this setup saves both time and backs. Mostly backs.
Industrial Applications
The Fixed Lift Platform is widely used in:
1.Warehouse & Logistics
Loading and unloading goods
Dock height adjustment
Forklift-assisted operations
2.Manufacturing & Production Lines
Material transfer between levels
Assembly line integration
Automated lifting systems
3.Equipment Maintenance
Engine and gearbox servicing
Heavy component handling
Stable working platform

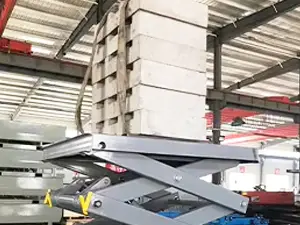

Application Showcase
Safety Features
Safety is built into every part of this Fixed Lift Platform:
Overload protection system
Explosion-proof hydraulic valves
Emergency stop function
Stable scissor structure
Anti-slip platform surface
These features ensure safe and controlled operation in demanding environments.
Maintenance & Service Life
To keep the Fixed Lift Platform operating efficiently:
Check hydraulic oil every 6 months
Lubricate pivot points regularly
Inspect cylinder seals for leakage
With proper maintenance, the equipment delivers long-term performance and reliability.
Why Choose This Fixed Lift Platform
This Fixed Lift Platform is engineered for industrial performance and durability.
Heavy-duty steel construction
Stable hydraulic lifting system
Reliable safety mechanisms
Easy operation and maintenance
Customizable for different applications
Each unit is tested before delivery to ensure it meets industrial standards and performs reliably under load.
Conclusion
The Fixed Lift Platform provides a stable, efficient, and safe solution for industrial lifting applications. With its robust structure, advanced hydraulic system, and practical design, it is an essential tool for modern manufacturing and logistics operations.
If your operation involves heavy materials and repetitive lifting, this platform does the job without complaints. Unlike most equipment operators.
