Original price was: $149,000.00.$145,000.00Current price is: $145,000.00.
Large molds don’t fail at the first cut.
They fail when small deviations accumulate across long machining distances.
This 5 axis CNC for mold making is designed to deliver stable results from start to finish, whether for yacht hull plugs, wind blade root molds, or automotive tooling board molds.
Send your CAD drawing
Receive cycle time estimation
Get accuracy and process recommendations
Make decisions based on real machining data.
In traditional mold making, problems are not always visible at the beginning.
3–5mm deviation leads to rework and manual correction
Manual finishing extends delivery by 7–10 days
Multi-setup machining creates alignment errors
Material waste increases with each adjustment
For large molds, inefficiency accumulates until delivery.
For molds over 10 meters:
Thermal variation exceeds micron-level differences
Structural rigidity affects final geometry more than static accuracy
Long-cycle consistency matters more than initial positioning
This is why a properly designed 5 axis CNC for mold making focuses on stability over distance.

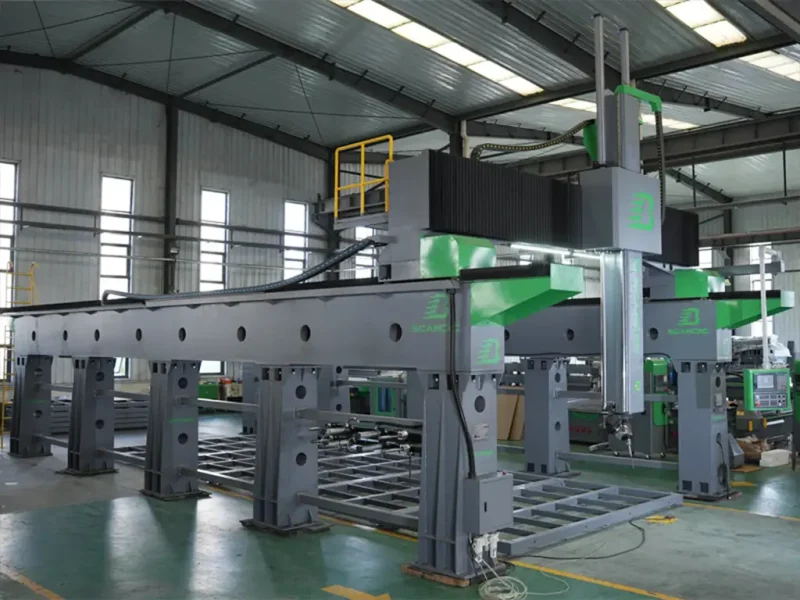

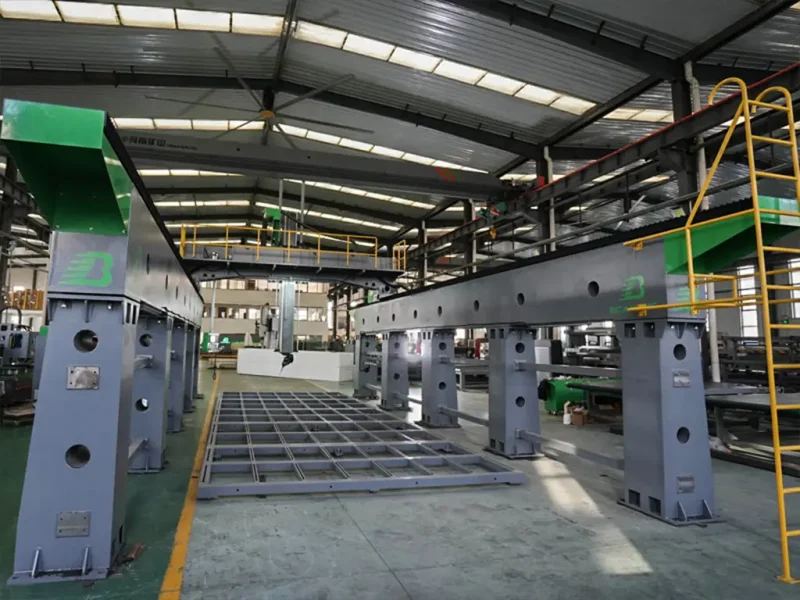

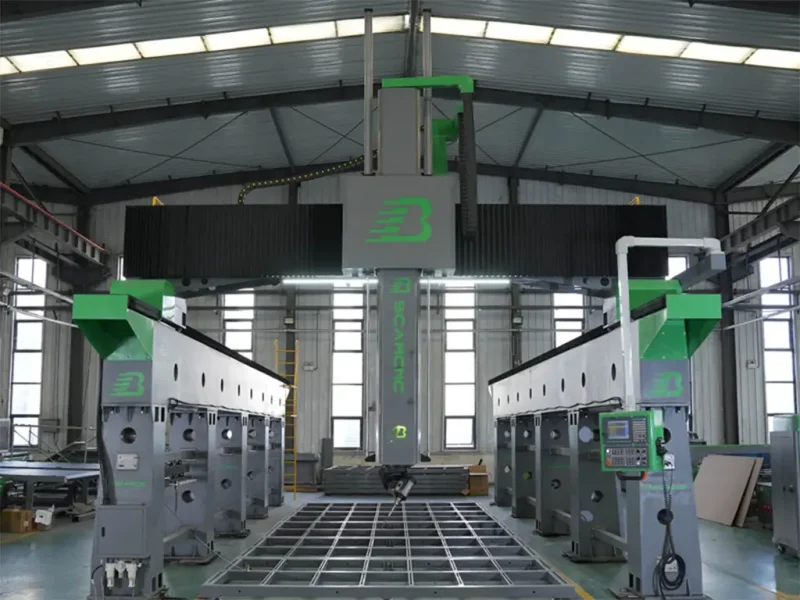

The DL series is a 5 axis mold making machine built for large-scale applications.
Typical Applications
Yacht hull plugs
Wind blade root molds

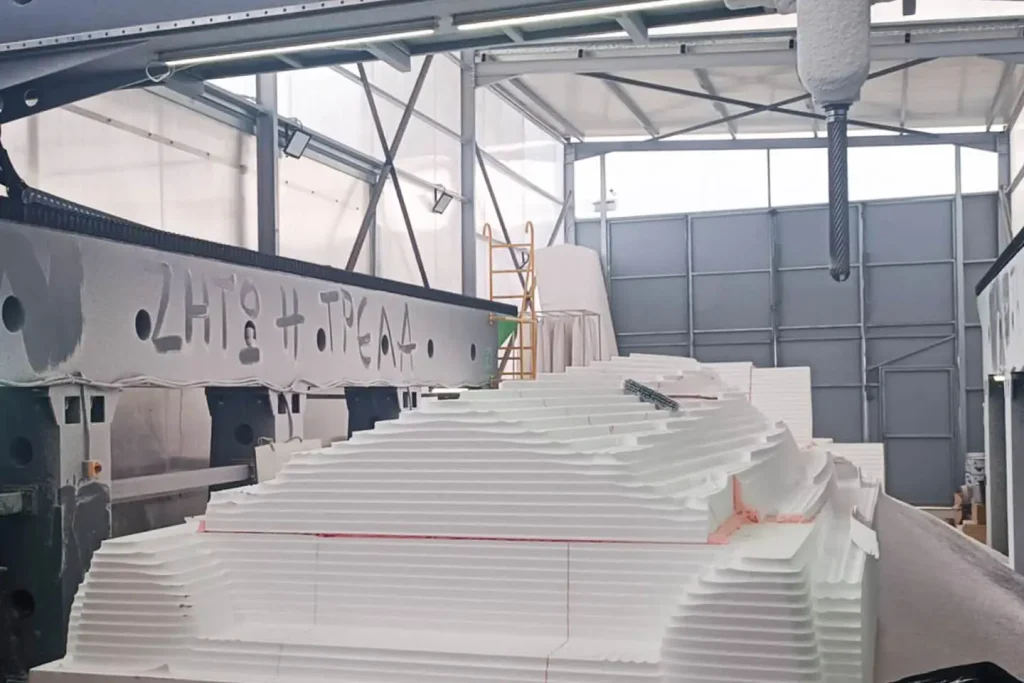

EPS foam molds
Large composite master molds
40m/min rapid traverse for large-area efficiency
15m/min stable cutting for foam and tooling materials
0.36mm positioning accuracy across long travel
±0.08mm repeatability per 1000mm
Maintains stable machining across long distances
Reduces cumulative deviation in large molds
Minimizes manual sanding after machining
For large molds, this cnc machine for large molds ensures predictable results rather than theoretical precision.
For production molds and fixtures, repeatability directly impacts final product quality.
The F series is a high-precision 5 axis CNC for mold making designed for this stage.
0.05mm positioning accuracy
±0.03mm repeatability per 1000mm
30m/min rapid traverse
12m/min stable cutting
Achieves high-quality surface finishes on tooling boards, reducing or eliminating the need for manual polishing.

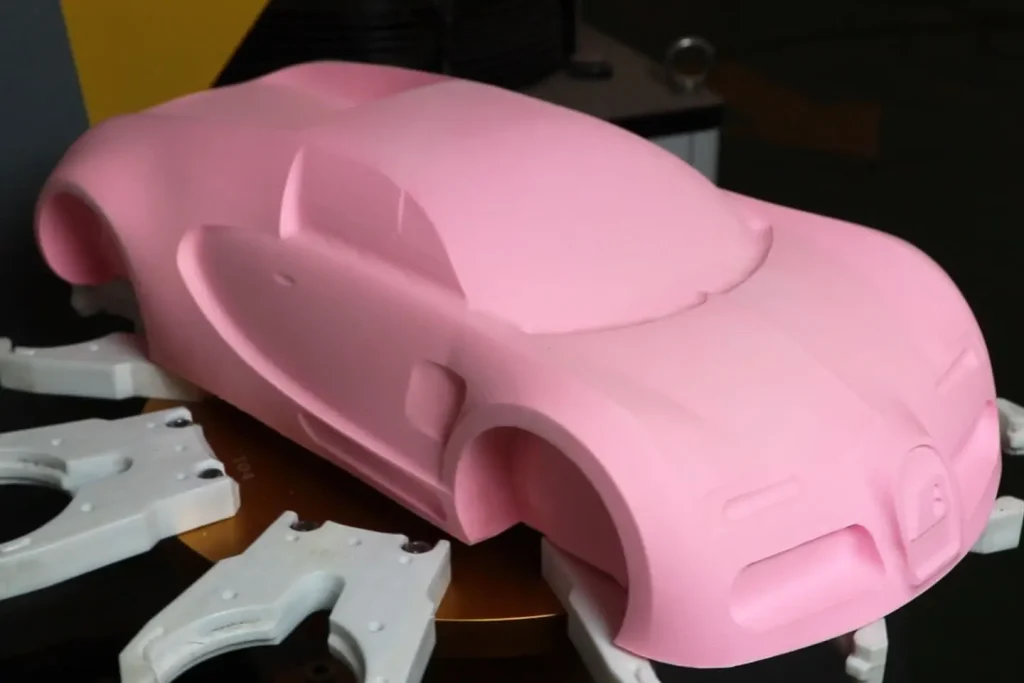

Automotive tooling board molds
Foundry patterns
Composite trimming fixtures
Inspection fixtures
Poor repeatability leads to inconsistent molds
Mold mismatch affects downstream assembly
Additional polishing reduces throughput
This is where a stable mold making cnc machine delivers real production value.
Compared to traditional processes:
Single setup machining reduces alignment errors
Continuous toolpath improves surface consistency
Less manual finishing is required
A well-configured cnc router for mold production improves both efficiency and repeatability.
40m/min rapid traverse improves non-cutting efficiency
Optimized cutting speeds maintain stable material removal
Supports tooling board (PU / epoxy), EPS foam molds, CFRP and GFRP composites
This cnc router for tooling is designed for real mold production environments.
Syntec 610MA / OSAI control systems
Hiteco / HSD 5-axis heads
Schneider Electric electrical components
Ensures global serviceability and long-term reliability.
A mold manufacturer producing foundry patterns, automotive tooling board molds, and 12m EPS foam molds for casting applications previously relied on manual shaping combined with 3-axis machining.
4–6mm deviation on large molds
Heavy dependence on skilled labor
Finishing cycles of 10–15 days
Inconsistent mold quality across batches
Adopted a combined 5 axis CNC for mold making strategy using DL series for large mold shaping and F series for precision finishing and tooling.
Cycle time reduced from 15 days to 5 days
End-to-end deviation controlled within 0.5mm
Manual finishing significantly reduced
Material waste reduced through improved accuracy
Production became more predictable and scalable.
Yacht hull plugs
Wind blade root molds
Automotive tooling board molds
Foundry patterns
EPS foam molds
Composite trimming fixtures
Inspection fixtures
Surface profiling
Edge trimming
Drilling and slotting
Complex contour machining
You produce molds larger than 3 meters
You need stable accuracy over long machining cycles
You want to reduce manual finishing and polishing
You work with tooling board, foam, or composite materials
Send your drawing and get a clear answer.
You will receive:
Cycle time estimation
Accuracy evaluation
Machine configuration recommendation
Make your next mold project predictable.
For molds over 5 meters, the DL series is designed to maintain stable accuracy across long travel distances, making it suitable for large mold production.
Yes. It functions as a cnc router for tooling and supports composite materials such as CFRP and GFRP, including trimming and finishing operations.
Yes. A combined setup using DL for large-scale shaping and F for precision finishing is commonly used in mold manufacturing.
