5 Axis CNC Stone Bridge Cutting Machine for Granite BCMS2035
5 Axis CNC Marble Stone Cutting Machine Bridge Saw
Last Updated: 2024-04-30
5-axis Stone Bridge Cutting Machines with waterjet. For precision milling & contouring of marble/granite. ±0.1mm accuracy. Ideal for countertops & architecture.
The 5-axis CNC stone bridge cutting machine is a high-precision and multi-functional stone processing equipment, which is widely used in the fields of stone cutting and special-shaped processing. The 5-axis CNC stone bridge cutting machine consists of a base, longitudinal moving assembly, transverse moving assembly, cutting assembly, and a workbench. The workbench can be tilted and rotated, and the cutting assembly can be lifted, rotated, and moved horizontally and vertically, enabling 5-axis processing and meeting diverse cutting requirements.
BCAM 5-Axis CNC Stone Bridge Cutting Machine Advantages
1. Advanced CNC Control System User-friendly interface with pattern operation and synchronized CNC control, eliminating the need for complex programming knowledge. Integrated smart camera system for automatic plate thickness measurement, tool sizing, and precision positioning – a key feature of the 5 Axis CNC Stone Bridge Cutting Machine.
2. 360° Multi-Axis Flexibility Fully rotating spindle head enables horizontal, vertical, arc, and round-angle cutting in any direction. Free movement plus rotation allows processing of complex shapes (e.g., curves, bevels) and large-format slabs with the precision expected from a CNC Stone Cutting Machine.
3. All-in-One Processing Capabilities Multi-functional integration: cutting, edging, chamfering (45°), drilling (basin/stove holes), and slash cutting. Supports quartz, rock slabs, artificial stone, granite, marble, and more for diverse stone projects, making it a versatile 5 Axis CNC Stone Bridge Cutting Machine for industrial use.
4. High Performance & Durability 11kW high-torque motor ensures fast speeds (±0.1mm precision) and long-term reliability. Intelligent OS reduces learning curves while maximizing productivity for every CNC Stone Cutting Machine application.
5. Wide Application Range Ideal for large, medium, and small stone décor projects, from kitchen countertops to architectural slabs. Trusted in professional workshops, fabricators, and stone production facilities that rely on 5 Axis CNC Stone Bridge Cutting Machines.
BCMAM 5-Axis CNC Stone Bridge Cutting Machine Specifications
Parameters
Standard Specifications
X,Y,Z Working Area
3500*2000*400MM
Programming Method
CAD & Manual
A AXIS Working Stroke
360° Free Rotation
B AXIS Working Stroke
Auto 0-90 degree chamfer
X,Y,Z Traveling Positioning Accuracy
±0.8/2000mm
Main Spindle Motor Power
7.5kw 3P/380V*50HZ , 1000-6000R/min
X.Y.Z transmission
X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate
30m/min
Max Cutting Thickness
80mm
Working Table size
3500*2000mm
Overall Size of stone Machine
5800*3120*3320MM (L*W*H)
Weight Total
4200kg
Loading of Container
20ft
Command Language
G Code
BCMAM 5-Axis CNC Stone Bridge Cutting Machine for Stone Details
90° Rotatable Table
Enables precise multi-side machining by rotating the stone table 90° for efficient workflow.
Camera function–positioning&Nesting
15 inch HD touch screen interface
Infrared laser Position
Wireless DSP
Auto Oil Pump
BCMAM 5-Axis CNC Stone Bridge Cutting MachineApplication Solution
1. High-End Furniture & Sanitary Ware
Countertops: Sink cutouts (diamond/oval shapes) and polished chamfered edges (15°–30°) with high precision using our 5 Axis CNC Stone Bridge Cutting Machine.
Custom Tables: Seamless stone tabletops with inlaid mosaics, leveraging the versatility of a CNC Stone Cutting Machine.
2. Industrial Building Components
Standardized Parts: Batch production of subway platform panels (200–300 units/day) using industrial-grade CNC Stone Cutting Machines.
Functional Elements: Anti-slip grooves for drainage covers, vented stone louvers, and custom stone fixtures.
3. Architectural Decoration & Artistic Projects
Curved Facades: Precision cutting for wave-shaped stone cladding (e.g., airport terminals, concert halls) with a 5 Axis CNC Stone Bridge Cutting Machine.
Columns & Balustrades: Spiral grooves or fluted designs on pillars (e.g., Roman-style columns).
Staircases: Single-pass cutting for helical steps with complex geometries.
Sculptures & Tombstones: 45° angled cuts, 3D reliefs, Buddhist statues, ornamental screens, all achievable with CNC Stone Cutting Machines.
4. Commercial, Retail & Hospitality Applications
Interiors: Store counters, reception desks, decorative panels, and custom retail signage.
Hospitality: Hotel lobbies, casinos, theaters, and entertainment venues with custom stone décor.
Furniture & Fixtures: Designer countertops, bar counters, and themed decorative panels using 5 Axis CNC Stone Bridge Cutting Machines.
Outdoor Elements: Garden benches, fountains, planters, stone pavements, curbs, and steps.
Industrial & Engineering: Stone molds or templates for concrete casting, engineered stone components, and custom stone jigs.
Education & Research: Architectural stone models, prototypes, and geological specimen shaping with CNC Stone Cutting Machines.
Efficiency Comparison
Application
Key Advantage
Productivity Gain
Curved Facades
Single-setup large-format cutting
40% faster completion
Tombstone Engraving
Multi-angle deep cutting
30–50% higher value
Countertop Sink Cut
Chip-free oblique drilling
<2% rework rate
Note: Machine selection depends on stone hardness (Mohs 4–7) and thickness (20–100mm). For example, granite requires ≥11kW spindle power. Provide details if specific parameters are needed.

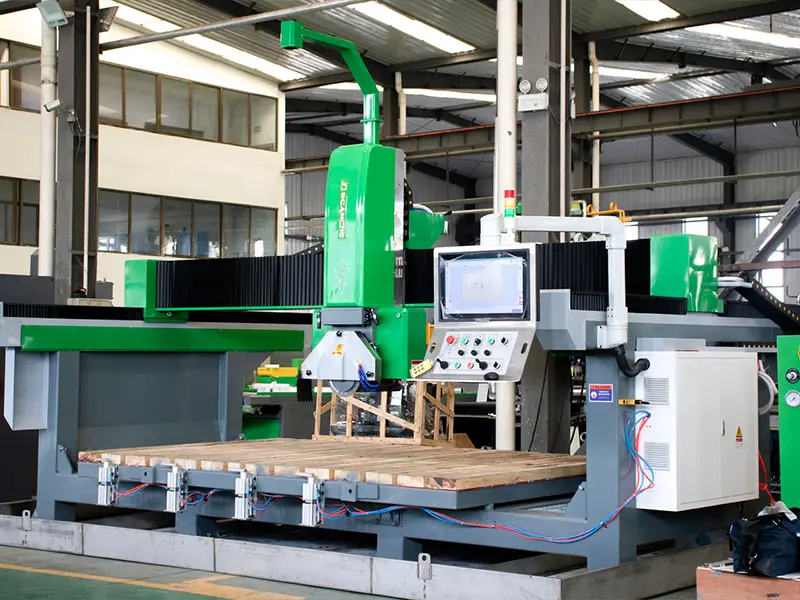

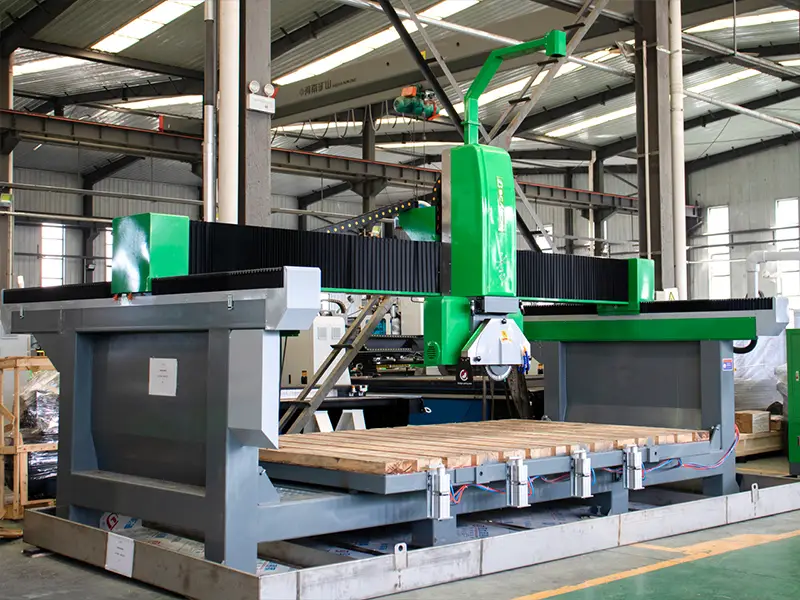

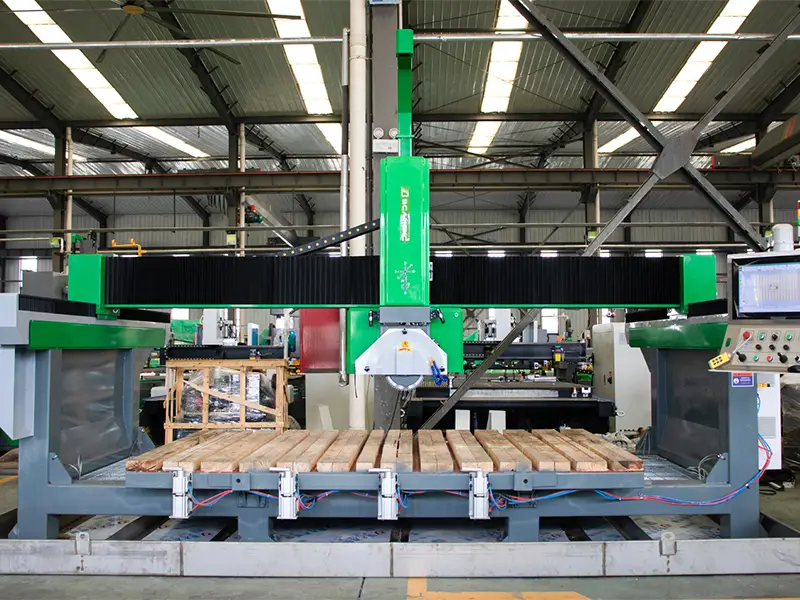

BCMAM 5-Axis Stone Bridge Cutting Machine CNC Router Display
Service & Support for BCAMCNC CNC Stone Bridge Cutting Machine Router
At BCAMCNC, we are committed to expanding our brand awareness and enhancing our corporate image by upholding the principles of “pursuing excellence in quality and customer satisfaction”. Our standards—superior product quality, exceptional service and support, and rigorous corporate management—ensure a seamless and trustworthy partnership with our clients.
1.Quality Assurance
Transparent Manufacturing Process: We invite you to inspect the entire production process on-site or via live video streaming, ensuring full visibility into our manufacturing excellence. You can also test the stone machine’s performance firsthand before shipment.
Comprehensive Quality Records: Detailed inspection reports and production data for the 5-Axis CNC Stone Bridge Cutting Machine are available upon request.
Strict Packaging Standards: All products undergo rigorous quality checks before being securely packed and shipped.
2.Competitive & Value-Driven Pricing
Affordable Without Compromise: BCAMCNC offers the most competitive prices without sacrificing technical performance or substituting components.
Premium Materials: To guarantee long-term durability and stability, we source raw materials exclusively from world-renowned manufacturers.
3.Efficient & Reliable Delivery
Complete Documentation: Every delivery includes:
Step-by-step instructional guides & setup videos
Comprehensive technical maintenance & repair manual
List of wear-resistant parts & optional accessories
Flexible Lead Times: Standard shipping takes 15-30 days, but we prioritize expedited production for urgent requests.
