Original price was: $5,284.00.$5,068.00Current price is: $5,068.00.
1.Auxiliary Automatic Feeding – The auxiliary feeding system frees your hands and makes edge banding easier on circular, oval, and rounded rectangular panels.
2.Laser Precision Jointing – Equipped with a laser alignment system, the machine detects the starting point of the edge banding strip and automatically cuts it, ensuring seamless and accurate joints.
3.Efficient Corner Processing – When the photoelectric switch detects a corner, the profiling wheel automatically reduces speed; when detecting a straight edge, it accelerates again. This ensures smooth edge finishing while maintaining high efficiency.
4.Advanced Gluing Assembly – The integrated glue pot and coating assembly deliver consistent, even adhesive application for strong, long-lasting edge bonding.
5.Automatic Trimming & Scraping – Features upper and lower flush trimming, following scraper for smooth edges, and thickness self-adjustment without manual calibration, ensuring perfect results on different panels.
| Power supply voltage | AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ |
| Total power | 6.5kw |
| Air source pressure | 0.6-0.8Mpa |
| Glue pot capacity | 2600ml |
| Glue pot temperature | 110℃-210℃ |
| Hot melt adhesive type | PUR/EVA |
| Edge banding width | 14-70mm |
| Edge banding thickness | 0.5-3mm (depending on the edge banding material) |
| Trimming plate thickness | <14mm single-side trimming, 14-70mm upper and lower double trimming (related to trimming knife) |
| Inner arc radius | ≥20mm(Special operation can seal radius 4mm) |
| Edge banding speed | 0-30cm/ |
| Profiling speed | 0-24cm/s |
| Gas tank capacity | 2L |
| Head rotation angle | 15° |
| External vacuum cleaner | Ф150mm |
| Air volume | 9800m³/h |

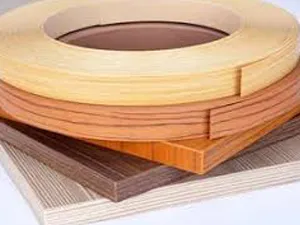

| Edge banding types | PVC, veneer (need to be customized), plastic, melamine, etc. |
| Packing size | 187×140×153cm |
| Weight | 530kg |

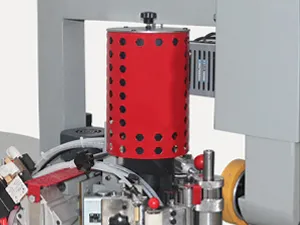

| Dual-Purpose Glue Pot (PUR/EVA) The top-mounted glue pot supports both PUR and EVA adhesives, allowing flexible bonding solutions for different production needs. It ensures strong adhesion and smooth glue application. |
 |
 |
 |
 |
Auxiliary Automatic Feeding System Equipped with an intelligent auxiliary feeding device, the machine can easily handle circular, oval, and rounded rectangular panels. This reduces manual labor and improves efficiency in curved edge banding. |

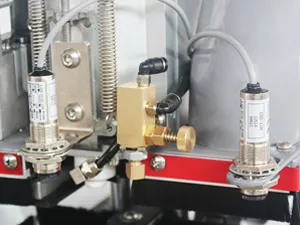

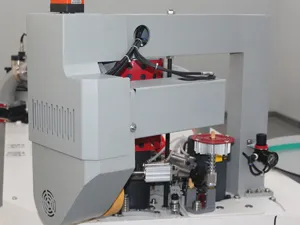

| Laser Precision Jointing A high-accuracy laser sensor detects the start point of the edge banding strip and automatically cuts it, achieving seamless and precise joints without manual adjustment. |
|
 |
 |
|

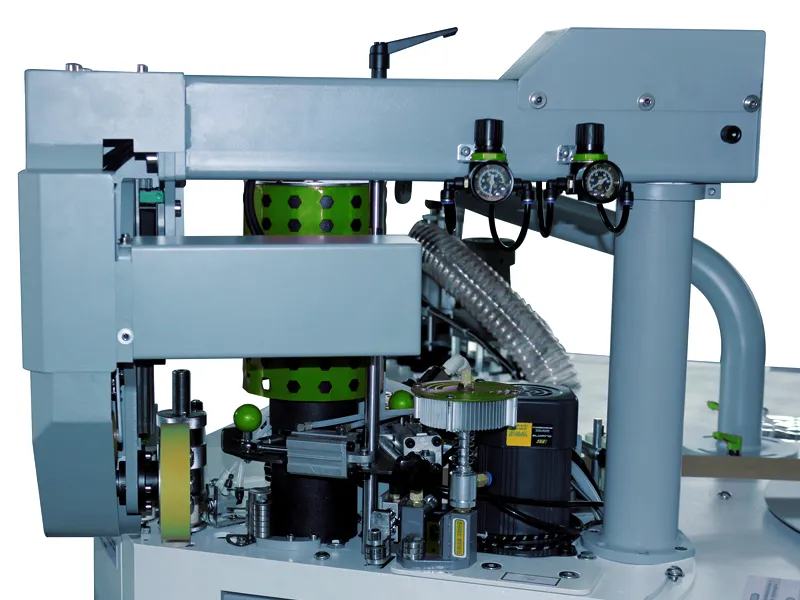

Rotatable Edge Banding & Trimming Heads The banding and trimming units can rotate according to the panel’s shape, ensuring consistent edge quality across straight lines, curves, and corners. |

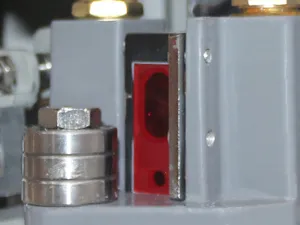

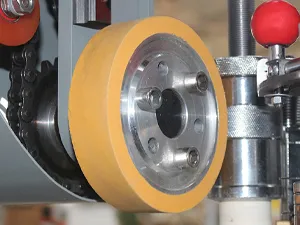

| Automatic Speed Control at Corners With the photoelectric switch, the profiling wheel slows down automatically at corners and accelerates on straight edges. This guarantees both smooth finishing and efficient operation. |
|
 |
 |
|

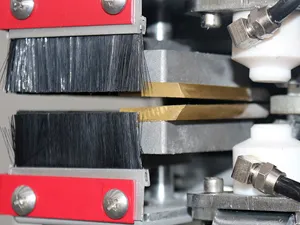

Fine Trimming & Scraping Assembly Features upper and lower trimming units, following scraper, and automatic thickness adjustment, ensuring a clean and polished edge without manual setting. |

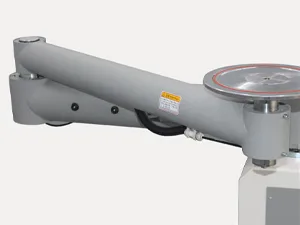

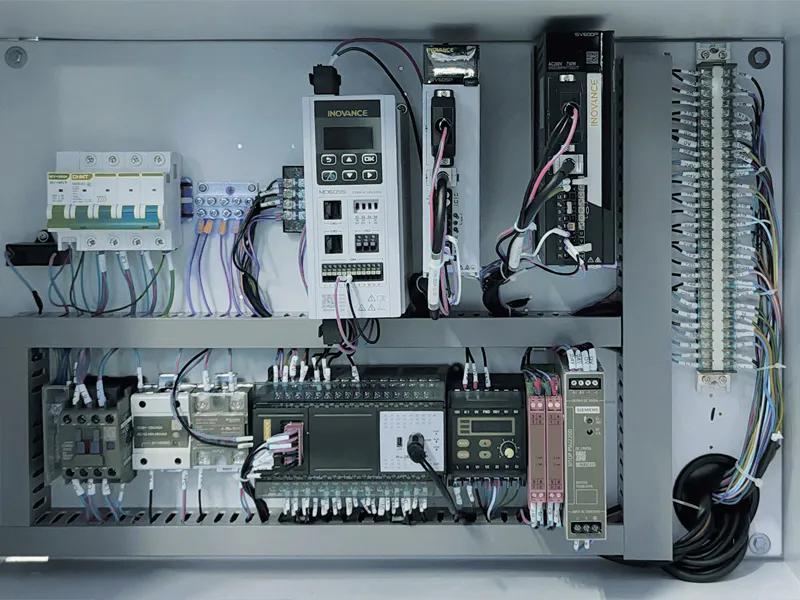

| Heavy-Duty Structure & Safety Features Built with a stable swing-arm design and robust frame, the machine maintains accuracy during continuous operation. Safety switches and emergency stop functions ensure secure working conditions. |
|
 |
The Swing Arm Curve Edge Banding Machine is designed for high-precision edge banding of curved and irregular-shaped panels. With automatic feeding, laser precision jointing, and advanced trimming, it improves productivity and ensures smooth, clean edges.
Applicable Industries
Applicable Materials
How It Is Applied
| Feature | Swing Arm Curve Edge Banding Machine | Standard Edge Banding Machine |
| Panel Shape Compatibility | Handles curved, oval, circular, and irregular panels with ease | Mostly limited to straight-edged panels |
| Automatic Feeding | Auxiliary automatic feeding for smooth panel handling | Usually requires manual feeding or limited automatic feeding |
| Corner Processing | Automatic speed adjustment at corners ensures smooth edges | Manual corner handling; speed and edge quality may vary |
| Edge Joint Precision | Laser precision jointing provides seamless, accurate connections | Manual alignment or simple mechanical guides; joints may not be as precise |
| Trimming & Scraping | Upper & lower trimming, following scraper, automatic thickness adjustment | Typically straight trimming; may require manual adjustments |
| Productivity | High efficiency for batch and custom-shaped panels | Efficient for straight panels but less flexible for curves |
| Applications | Ideal for furniture, cabinets, curved decorative panels | Suitable mainly for straight furniture panels and standard cabinetry |
| Labor Requirement | Reduced manual labor due to automation | Higher labor input for feeding, corner handling, and adjustments |

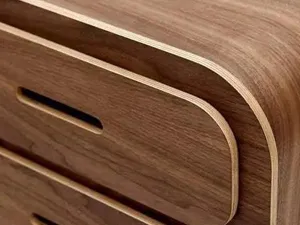

The Swing Arm Curve Edge Banding Machine is designed for curved and irregular-shaped panels, providing automated feeding, laser-precision jointing, and corner speed control, making it highly suitable for modern furniture and custom woodworking. In contrast, standard edge banding machines are better suited for straight-edged panels and may require more manual handling, especially for curves or irregular shapes.
Choosing BCAMCNC means working with a manufacturer that combines advanced technology, reliable quality, and customer-focused service. Our Swing Arm Curve Edge Banding Machines are engineered for precision, durability, and efficiency, making them the ideal solution for furniture manufacturers, cabinet makers, and custom woodworking shops.
With BCAM CNC, you gain more than just a machine — you gain a long-term partner dedicated to supporting your growth and success in woodworking production.
1. What is a Swing Arm Curve Edge Banding Machine?
It is a specialized edge banding machine designed to process curved, circular, oval, and irregular-shaped panels. With auxiliary automatic feeding, laser precision jointing, and automatic corner speed adjustment, it ensures smooth and accurate edge finishing.
2. What types of materials can this machine process?
The machine works with MDF, plywood, particle board, laminated panels, veneered panels, and even solid wood boards, making it versatile for furniture and interior applications.
3. How is it different from a standard edge banding machine?
Unlike standard machines that are mainly for straight edges, the swing arm curve edge banding machine can handle curved and irregular panels. It also features laser precision jointing, automatic feeding, and adaptive corner speed control for higher efficiency.
4. What glue types are supported?
The machine comes with a dual-purpose top glue pot that supports both PUR and EVA adhesives, providing strong bonding for different production needs.
5. Does it require manual feeding?
No. It is equipped with an auxiliary automatic feeding system, reducing manual labor and making it suitable for batch production of curved panels.
6. What industries is this machine most suitable for?
It is widely used in furniture manufacturing, kitchen cabinets, wardrobes, office furniture, and interior decoration, especially for products with curved or decorative panel edges.
7. Is the machine easy to operate?

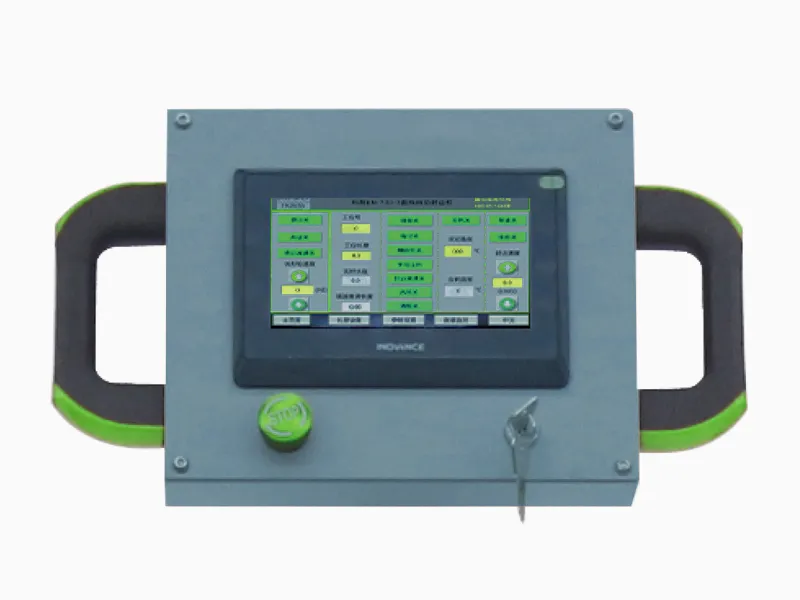

Yes. It has user-friendly controls, automated adjustments, and minimal manual settings, making it suitable for both skilled operators and workshops upgrading from manual edge banding.
8. What about maintenance?
The machine includes automatic lubrication and durable high-quality components. Regular cleaning of glue pots and dust extraction ensures long service life with minimal downtime.
9. Can BCAMCNC provide after-sales support?
Absolutely. BCAMCNC offers global installation guidance, training, spare parts supply, and technical support to ensure smooth operation for all customers.
