1. Advanced Machine Tool Electrical System
The NC press brake features a high-definition LCD display with Chinese and English options, allowing all programming parameters to be shown on one page for faster setup and easier operation. The X and Y axes can be positioned digitally or manually, eliminating traditional hand-operated devices and improving flexibility. With built-in pressure holding time, unloading delay, one-click parameter backup, and multi-step programming, the NC press brake bending machine ensures higher efficiency, reduced maintenance costs, and precise bending of complex workpieces. All control buttons are CE-certified micro switches tested for EMC, vibration, and temperature stability, ensuring reliable global performance for metal sheet press brake operations.
2. High-Precision German Hydraulic System
Equipped with a REXROTH hydraulic system from Germany, the NC press brake delivers superior bending accuracy and long-term reliability. The throat is fitted with a deformation compensation device to directly measure and maintain precision between the upper punch and lower die. Cylinders are forged, quenched, and precision-finished, with hard-chrome plated piston rods for durability and anti-wear resistance. Hydraulic pipes and connectors use EMB components from Germany, offering overload protection, oil level monitoring, and consistent stability for high-precision multi-step bending operations of press brake machines.
3. Strict Quality Standards and Reliability
All NC press brake machines are manufactured and accepted according to national and international standards. Production, installation, and service follow the ISO9001:2000 quality assurance system to guarantee stability, safety, and repeatable accuracy. Each press brake bending machine is fully tested before shipment to ensure customers receive brand-new, high-quality equipment that performs reliably in demanding metal sheet press brake environments.
4. Comprehensive Warranty and Support
The NC press brake comes with a 36-month quality guarantee from the date of acceptance. During the warranty period, any defects caused by supplier quality issues will be repaired or replaced at no additional cost. Customers also receive professional operator training and detailed documentation, ensuring smooth installation, efficient operation, and long-term value for their investment in the NC press brake bending machine.

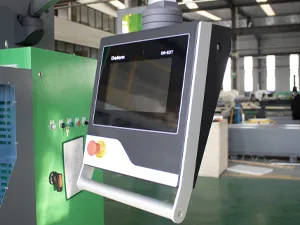

| E21s Controller X&Y axis Control, bending angle set |
 |
 |
 |
 |

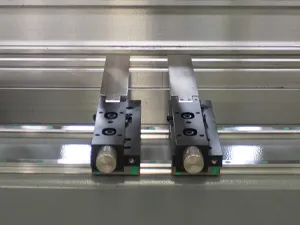

Standard Back Gauge Factory made, all metal structure |
| Schneider Electrics
World famous bran, Stable quality. easy to get replace parts |
|
 |
|
|
|

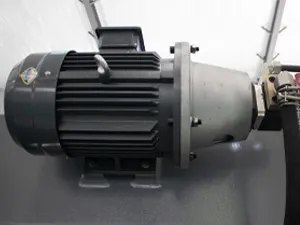

Siemens Motor
Siemens China Factory Made |

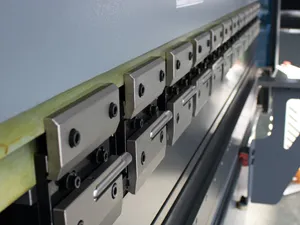

| Standard Tool Clamp Fxied type, can change to fast released type |
|
|
|
|
|

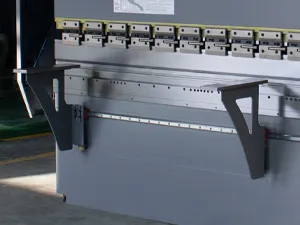

Front Supporter Rotate type |

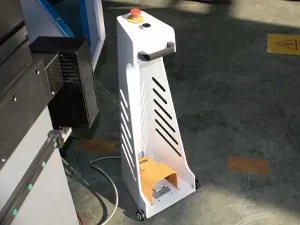

| Foot Switch CE Standard Foot Switch |
|
|
| Serial number | Name | Numerical value | unit |
| 1 | nominal power | 400 | KN |
| 2 | Workbench length | 1600 | mm |
| 3 | Distance between uprights | 1200 | mm |
| 4 | throat depth | 200 | mm |
| 5 | Slider stroke | 120 | mm |
| 6 | maximum opening height | 380 | mm |
| 7 | Main servo motor | 4 | L/min |
| 8 | Main oil pump | 10 | mm/s |
| 9 | Slide stroke speed | 130 | mm/s |
| 12 | mm/s | ||
| 100 | mm/s | ||
| 10 | Overall dimensions | 1900 | mm |
| 1050 | mm | ||
| 2100 | mm |
|
Type
|
Nominal pressure (KN)
|
Workbench length (mm)
|
Workbench width (mm)
|
Poles distance (mm)
|
Throat depth (mm)
|
Main motor (kw)
|
Dimensions L*W*H (mm)
|
|
40*1600
|
400
|
1600
|
900
|
1165
|
350
|
5.5
|
2250*1650*2400
|
|
63*2500
|
630
|
2500
|
900
|
1960
|
380
|
5.5
|
3150*1700*2500
|
|
80*2500
|
800
|
2500
|
900
|
1960
|
380
|
7.5
|
3150*1700*2500
|
|
80*3200
|
800
|
3200
|
900
|
2760
|
380
|
7.5
|
3850*1700*2500
|
|
100*3200
|
1000
|
3200
|
950
|
2750
|
390
|
7.5
|
3900*1800*2650
|
|
125*3200
|
1250
|
3200
|
950
|
2750
|
390
|
11
|
3900*1800*2680
|
|
160*3200
|
1600
|
3200
|
1000
|
2740
|
400
|
15
|
4000*1900*2720
|
|
200*3200
|
2000
|
3200
|
1000
|
2730
|
400
|
18.5
|
4000*1900*2720
|
|
300*3200
|
3000
|
3200
|
1330
|
2720
|
500
|
22
|
4000*2200*3500
|
|
100*4000
|
1000
|
4000
|
950
|
3350
|
390
|
7.5
|
4800*1800*2650
|
|
125*4000
|
1250
|
4000
|
950
|
3350
|
390
|
11
|
4800*1800*2680
|
|
160*4000
|
1600
|
4000
|
1000
|
3340
|
400
|
15
|
4800*1900*2720
|
|
200*4000
|
2000
|
4000
|
1000
|
3330
|
400
|
18.5
|
4800*1900*2800
|
|
250*4000
|
2500
|
4000
|
1000
|
3330
|
450
|
18.5
|
4800*1900*2850
|
|
300*4000
|
3000
|
4000
|
1330
|
4920
|
500
|
22
|
4800*1950*2900
|
|
200*6000
|
2000
|
6000
|
1000
|
4940
|
400
|
18.5
|
6800*1900*2800
|
|
250*6000
|
2500
|
6000
|
1050
|
4930
|
450
|
18.5
|
6800*1900*2850
|
|
300*6000
|
3000
|
6000
|
1330
|
4920
|
500
|
22
|
6800*1950*2900
|
|
400*6000
|
4000
|
6000
|
1350
|
4920
|
500
|
37
|
6800*2000*2950
|
|
500*6000
|
5000
|
6000
|
1350
|
4910
|
500
|
45
|
6800*2050*3000
|
1.Applicable Materials
The NC press brake bending machine is ideal for metal bending machine operations and suitable for bending:Stainless steel sheets
2.Application Scenarios
This press brake machine is widely used in sheet metal projects, including:
3.Applicable Industries
Perfect for workshops and industries using bending machine press brake for precision sheet metal forming:
| Feature | CNC Press Brake | NC Press Brake |
| Control System | Full computer numerical control, supports 3–8 axes (Y1, Y2, X, R, Z1, Z2, etc.) | Digital display control (e.g., E21s system), usually controls 2 axes (X, Y) |
| Programming | Graphical interface, stores multiple programs, automatic bending sequence & angles | Simple numeric input, limited program storage, requires more operator experience |
| Precision & Accuracy | Very high precision (±0.01 mm) with servo motors and auto compensation | Good accuracy for standard sheet metal jobs, less efficient for complex bending |
| Efficiency | High automation, fast processing, suitable for mass production | Moderate efficiency, better for small to medium batch jobs |
| Application Scope | Aerospace, automotive, electronics, large-scale industrial manufacturing | Small workshops, construction materials, cabinets, and general sheet metal work |
| Cost & Investment | Higher price, but saves labor and increases long-term ROI | Lower investment, cost-effective for standard bending requirements |
1.Installation & Training
BCAMCNC provides professional installation guidance and operator training for NC press brake and press brake bending machine users. Customers receive detailed operation manuals, video tutorials, and on-site or online training to ensure smooth machine startup, safe operation, and efficient use of metal sheet press brake.
2.Warranty & Guarantee
All press brake machines come with a 36-month quality warranty. During the warranty period, if any parts fail due to manufacturing defects, BCAMCNC will repair or replace them free of charge, ensuring reliable performance of your NC press brake.
3.Technical Support
We offer 24/7 technical support via email, phone, or online video. Our experienced engineers provide quick solutions for troubleshooting, parameter adjustments, and process optimization for all press brake bending machine sheet metal operations.
4.Spare Parts Supply
Original spare parts and consumables for NC press brake machines are available with fast delivery to minimize downtime and keep your production running efficiently.
5.Global Service Network
BCAMCNC has established a strong service network covering overseas markets. With CE-certified products and ISO9001:2000 quality management, we guarantee reliable performance and international-standard after-sales service for all press brake machines.
6.Customer Care
Regular follow-ups, software updates, and professional maintenance suggestions are provided to help customers extend the lifespan of their press brake bending machine and maximize return on investment.
1. What is an NC Press Brake?
An NC (Numerical Control) Press Brake, also known as a digital display press brake, is a sheet metal processing machine that uses a numerical control system to control the back gauge and bending angle for higher precision compared to manual Press Brake.
2. What materials can be processed with an NC Press Brake?
NC Press Brake are suitable for stainless steel, carbon steel, galvanized sheet, aluminum, copper, and alloy plates, covering most sheet metal fabrication needs.
3. What are the advantages of an NC Press Brake?
It offers easy operation, accurate bending, lower cost, and higher efficiency compared with traditional manual bending. It is especially effective for small to medium batch production.
4. What is the difference between NC and CNC Press Brake?
5. What control systems are commonly used in NC Press Brake?
Most NC press brakes use the E21s or E200P controller, which supports digital display, easy parameter setting, and multi-step programming.
6. What industries use NC Press Brake?
They are widely used in metal fabrication, construction, automotive, aerospace, furniture, electrical cabinets, and appliance manufacturing.
